Same model may have multiple batches, images only for reference.

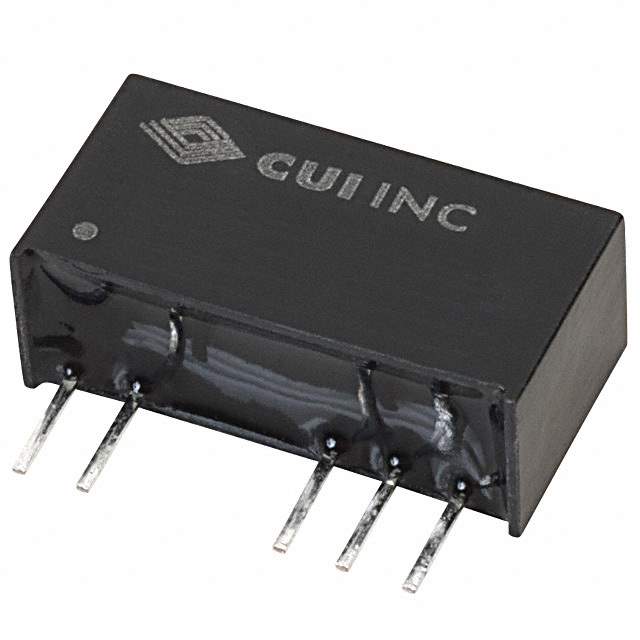

PEM2-S15-D15-S Real Image
Same model may have multiple batches, images only for reference.

PEM2-S15-D15-S

Part No PEM2-S15-D15-S
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 2W
Datasheet
PEM2-S15-D15-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Estimated Pruduction Lead Time 11 Weeks
Features Isolated Module DC DC Converter 2 Output 15V -15V - 66.6mA, 66.6mA 13.5V - 16.5V Input
Manufacturer CUI Inc.
Series PEM2-S (2W)
Package Tube
Operating Temperature Range -40°C ~ 105°C
Mounting Through Hole
Package 7-SIP Module, 5 Leads
Family Name PEM2-S15
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number PEM2-S15-D15-S-ND, 2266-PEM2-S15-D15-S, PEM2S15D15S, 102-3038-5
Quantity per package 25
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 888925-PEM2-S15-D15-S
Ultra Librarian 3D Model Ultra Librarian PEM2-S15-D15-S CAD Model

Description

The PEM2-S15-D15-S is a 2W isolated module DC-DC converter that comes with two outputs, 15V and -15V, with a maximum output current of 66.6mA.

  • Input Voltage Range: 13.5V to 16.5V
  • Operating Temperature Range: -40°C ~ 105°C
  • Mounting: Hole
  • Package: 5-lead 7-SIP module
  • Standard Package: 25
  • Series: PEM2-S (2W)
  • Approval: EN
  • Application: Power Supplies
  • Popularity: Medium
