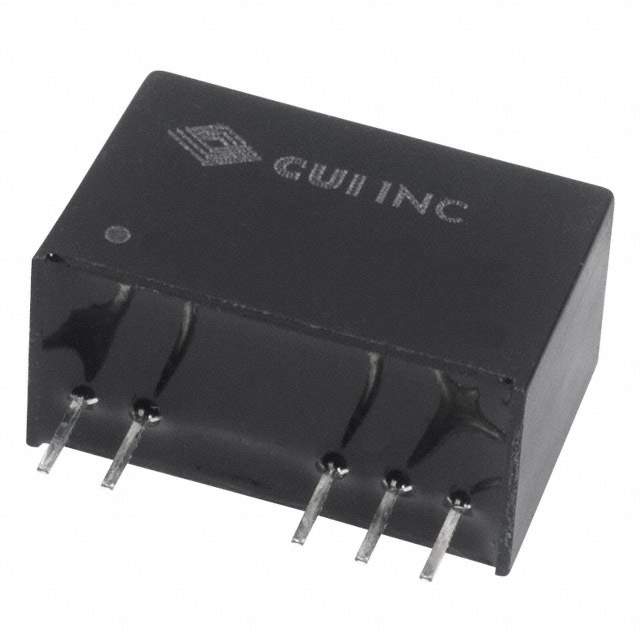

VQA-S15-D17-SIP Real Image
Same model may have multiple batches, images only for reference.

VQA-S15-D17-SIP

Part No VQA-S15-D17-SIP
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 17V -8.6V 2W  /  Isolated Module DC DC Converter 2 Output 17V -8.6V 80mA, 40mA 14.5V - 15.5V Input
Datasheet
VQA-S15-D17-SIP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr CUI Inc.
Series VQA
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 14.5V
Voltage - Input (Max) 15.5V
Voltage - Output 1 17V
Voltage - Output 2 -8.6V
Current - Output (Max) 80mA, 40mA
Power (Watts) 2 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 105°C
Efficiency 80%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Dimension 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
Approval Agency CB Scheme, IEC, UL
Standard Number 60950-1
Base Product Number VQA-S15
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 102-2881,2266-VQA-S15-D17-SIP,VQAS15D17SIP
Standard Package 25
Win Source Part Number 977066-VQA-S15-D17-SIP
Ultra Librarian 3D Model Ultra Librarian VQA-S15-D17-SIP CAD Model

Description

The CUI Inc. 977066-VQA-S15-D17-SIP is an isolated module DC-DC converter that is ideal for use in ITE (Commercial) applications.

  • Power Output: 2W
  • Voltage Isolation: 3kV
  • Outputs: two outputs
  • Maximum Output Current 1: 80mA
  • Voltage 1: 17V
  • Maximum Output Current 2: 40mA
  • Voltage 2: -8.6V
  • Efficiency: 80%
  • Mounting: through a hole in the 7-SIP module
  • Module Dimensions: 0.77 inches in length, 0.39 inches in width, and 0.49 inches in height
  • Compliance: CB Scheme, IEC, and UL standards
