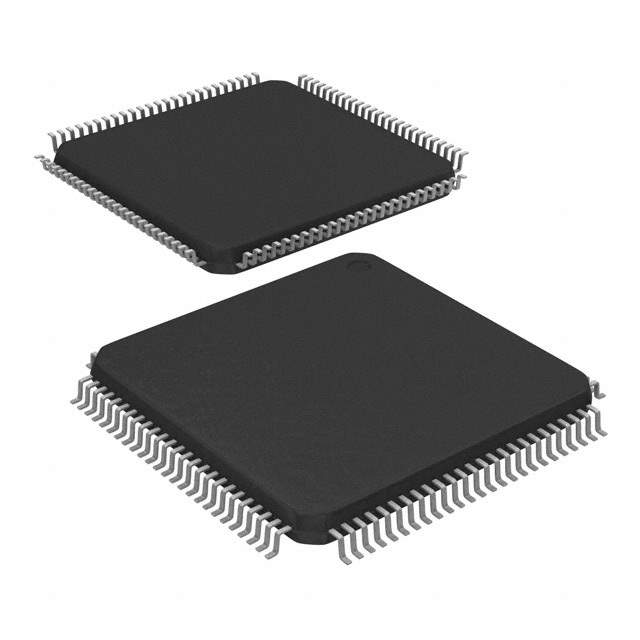

MB9AF314NAPMC-G-JNE2 Real Image
Same model may have multiple batches, images only for reference.

MB9AF314NAPMC-G-JNE2

Part No MB9AF314NAPMC-G-JNE2
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 256KB FLASH 100LQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features ARM® Cortex®-M3 series Microcontroller IC 32-Bit 40MHz 256KB (256K x 8) FLASH 100-LQFP (14x14)
Manufacturer Cypress Semiconductor Corp
Series FM3 MB9A310A
Package Tray
Part Status Obsolete
Core Processor ARM® Cortex®-M3
Core Size 32-Bit
Speed 40MHz
Connectivity CSIO, EBI/EMI, I²C, LINbus, UART/USART, USB
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 83
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
Supply Voltage 2.7V ~ 5.5V
Data Converters A/D 16x12b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 105°C (TA)
Mounting Surface Mount
Package 100-LQFP
Case / Package 100-LQFP (14x14)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Other Part Number 1534-1069, MB9AF314NAPMC-G-JNE2-ND
Quantity per package 90
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 883049-MB9AF314NAPMC-G-JNE2
Ultra Librarian 3D Model Ultra Librarian MB9AF314NAPMC-G-JNE2 CAD Model

Description

The Cypress Semiconductor Corp MB9AF314NAPMC-G-JNE2 is a high-performance ARM® Cortex®-M3 series Microcontroller IC.

  • Core: 32-bit 40MHz
  • Memory: 256KB (256K x 8) FLASH
  • Package: 100-LQFP (14x14)
  • Mounting: Surface mountable
  • Connectivity: CSIO, EBI/EMI, I²C, LINbus, UART/USART, USB
  • Peripherals: DMA, LVD, POR, PWM, WDT
  • Data Converter: A/D 16x12b
  • Oscillator Type: Internal
  • Supply Voltage: 2.7V ~ 5.5V
  • Operating Temperature: -40°C ~ 105°C (TA)
  • Status: Obsolete
  • Status: Limited supply and demand
  • Package: Tray
  • Popularity: Medium
