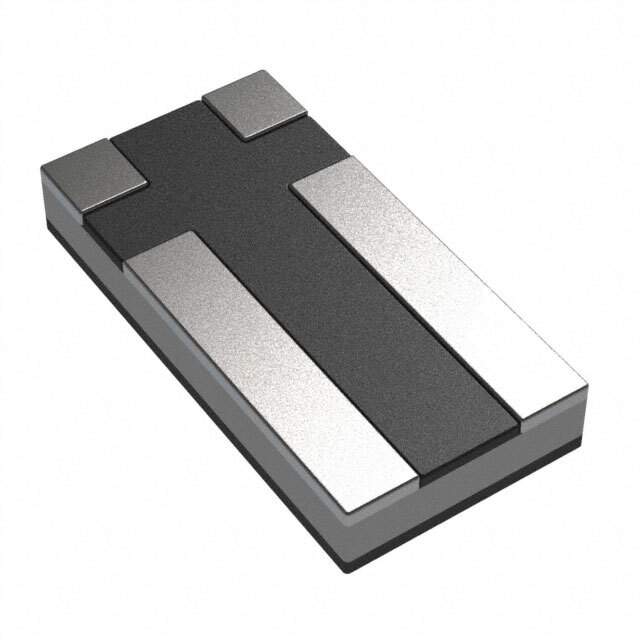

RL1632T4F-0R5M-FNH Real Image1 RL1632T4F-0R5M-FNH Real Image2
Same model may have multiple batches, images only for reference.
RL1632T4F-0R5M-FNH Real Image1 RL1632T4F-0R5M-FNH Real Image2
RL1632T4F-0R5M-FNH Real Image1 RL1632T4F-0R5M-FNH Real Image2
Same model may have multiple batches, images only for reference.

RL1632T4F-0R5M-FNH

Part No RL1632T4F-0R5M-FNH
Manufacturer Delta Electronics
Catalog Chip Resistor - Surface Mount
Description RES 500 UOHM 1% 1W WIDE 1206 / 0.5 mOhms ±1% 1W Chip Resistor Wide 1206 (3216 Metric), 0612 Current Sense Metal Film
Datasheet
RL1632T4F-0R5M-FNH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Delta Electronics
Series RL1632T4F
Package Tape & Reel
Resistance 0.5 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Metal Film
Features Current Sense
Temperature Coefficient ±300ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case Wide 1206 (3216 Metric), 0612
Supplier Device Package 0612
Ratings -
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.035" (0.90mm)
Number of Terminations 4
Failure Rate -
Base Product Number RL1632T4F
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Standard Package 4,000 pcs
Win Source Part Number 1383330-RL1632T4F-0R5M-FNH
Ultra Librarian 3D Model Ultra Librarian RL1632T4F-0R5M-FNH CAD Model

Description

The 1383330-RL1632T4F-0R5M-FNH is a chip resistor from the RL1632T4F series by Delta Electronics.

  • Capabilities: Current sense
  • Package: Tape & reel
  • Size/Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Maximum Seated Height: 0.035" (0.90mm)
  • Standard Package: 4,000 pieces
  • Tolerance: ±1%
  • Temperature Coefficient: ±300ppm/°C
  • Power Rating: 1W
  • Composition: Metal film
  • Terminations: 4
  • Resistance: 0.5 mOhms
  • Package/Case Size: Wide 1206 (3216 Metric), also known as 0612
  • Supplier Device Package: 0612
  • Operating Temperature: -55°C to 150°C
  • ECCN: EAR99
  • Moisture Sensitivity Level (MSL): 1 (unlimited)
