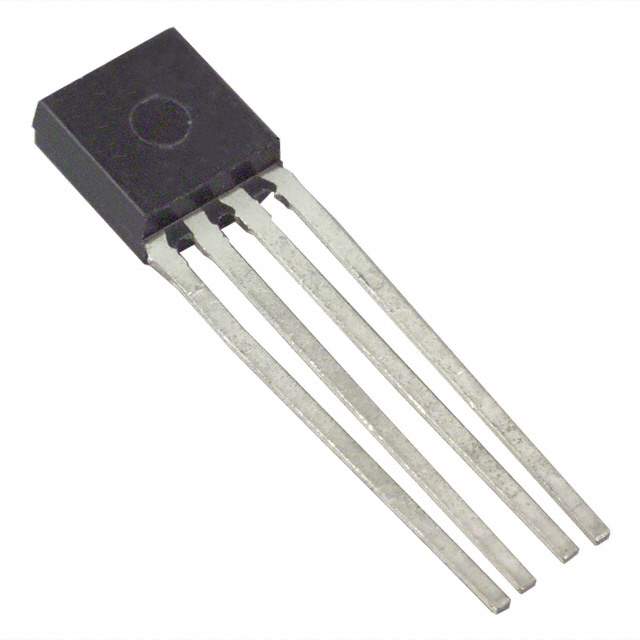

Product Overview: AH266K-PL-B-A from Diodes Incorporated

The AH266K-PL-B-A is a high-performance Hall Effect latch manufactured by Diodes Incorporated, a leading global manufacturer and supplier of high-quality semiconductor products. This magnetic latch is designed for a wide range of applications, including but not limited to, position and speed sensing in motors, brushless DC electric motors (BLDC), and various other magnetic sensing operations.

Key Features

• Operating Voltage Range: The AH266K-PL-B-A operates over a wide voltage range, making it versatile for use in various electrical environments.
• Temperature Range: With an operating temperature range that ensures reliability across different working conditions, this product is suitable for applications that may experience temperature fluctuations.
• Output Type: It features an open-collector output, which allows for flexible interfacing with other electronic components.
• Sensitivity: The device has high magnetic sensitivity, which provides accurate and responsive readings.
• Package: It comes in a small package size for easy integration into space-constrained applications.

Applications

The AH266K-PL-B-A is ideal for various applications that require precise magnetic sensing. Its robust design and reliable performance make it suitable for:

• Rotary and linear position sensing
• Speed detection in motors and fan blades
• Proximity detection
• BLDC motor controllers
• Flow meters

Advantages

Choosing the AH266K-PL-B-A Hall Effect latch from Diodes Incorporated offers several advantages:

• High reliability and long operational life due to its robust design.
• Flexibility in use across a wide range of industrial and commercial applications.
• Easy to integrate into existing designs because of its compact size and simple interfacing requirements.
• Enhanced performance with its high sensitivity to magnetic fields, providing precise and quick response times.

Overall, the AH266K-PL-B-A is a testament to Diodes Incorporated's commitment to providing high-quality, innovative semiconductor solutions that meet the evolving needs of modern technology.
