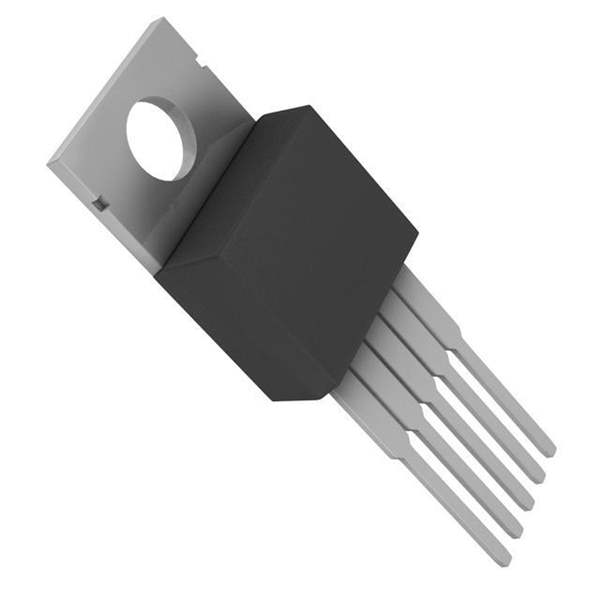

The AP1501A-33T5RG-U is a high-performance PWM (Pulse Width Modulation) buck (step-down) DC/DC converter designed and manufactured by Diodes Incorporated. This versatile component is engineered to provide a reliable and efficient power conversion solution for a wide array of electronic applications. With its ability to step down input voltages ranging from 4.5V to 40V to a fixed output voltage of 3.3V, it is particularly suitable for use in systems that require a stable and regulated power supply.

Key Features

• Output Voltage: Fixed 3.3V output to power a variety of low-voltage electronics.
• Input Voltage Range: Wide 4.5V to 40V input voltage range, accommodating a broad spectrum of power sources.
• Output Current: Capable of delivering up to 3A of continuous output current, making it suitable for high-power applications.
• High Efficiency: Integrated PWM control circuitry ensures efficient operation, reducing power loss and heat generation.
• Thermal Protection: Built-in thermal shutdown function protects the device from overheating, enhancing reliability and longevity.
• Adjustable Switching Frequency: Allows for optimization between efficiency and component size.
• Package: Available in a TO-263-5 package, which is known for its thermal performance and space-saving footprint.

Applications

The AP1501A-33T5RG-U is an ideal choice for a variety of electronic applications, including, but not limited to:

• Consumer Electronics
• Telecommunications
• Computer Peripherals
• Networking Systems
• Industrial Equipment

Quality and Reliability

Diodes Incorporated is known for their commitment to quality and reliability, and the AP1501A-33T5RG-U is no exception. It is built to meet high industry standards, ensuring performance and durability in even the most demanding conditions. Whether you are designing a new system or seeking to improve an existing one, the AP1501A-33T5RG-U offers a flexible and dependable power conversion solution that engineers and designers can trust.
