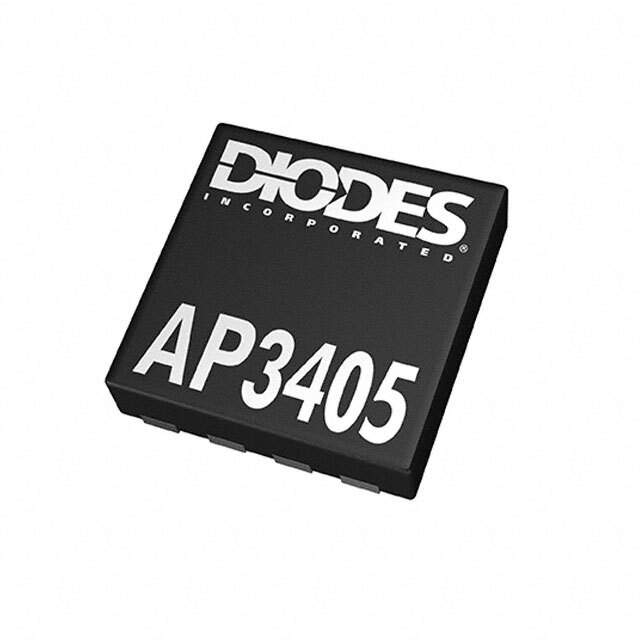

Diodes Incorporated AP3405SHE-7 DC-DC Converter

The AP3405SHE-7 is a high-efficiency, synchronous, rectified, step-down DC-DC converter from Diodes Incorporated, designed to deliver a constant, regulated output voltage with an input supply range suitable for battery-powered and low-power applications. This compact and robust component is ideal for portable electronics, IoT devices, and a variety of other applications requiring efficient power conversion.

With its small form factor, the AP3405SHE-7 comes in a 6-pin SOT-23 package, which is highly valued for space-constrained applications. The device is capable of driving a load up to 600mA with excellent line and load regulation. The wide input voltage range from 2.7V to 5.25V makes it versatile for various power sources, including single-cell lithium-ion batteries.

One of the key features of the AP3405SHE-7 is its high switching frequency, set at 1.4MHz, which allows the use of small, low-cost inductors and capacitors, resulting in a compact power supply solution with minimal external components. Moreover, the device incorporates synchronous rectification to enhance efficiency, especially at lower load conditions, which is crucial for prolonging battery life in portable applications.

The converter also includes multiple protection features to ensure safe operation under abnormal conditions. These include over-current protection (OCP), under-voltage lockout (UVLO), and thermal shutdown. The OCP automatically limits the output current to prevent damage to the AP3405SHE-7 or the load, while the UVLO feature ensures the device operates only when the input voltage is within its specified range. Thermal shutdown protects the device from overheating, enhancing the reliability and lifespan of both the converter and the end product.

For design flexibility, the AP3405SHE-7 allows for adjustable output voltage via external resistors, enabling designers to set the output voltage to the required level for their specific application. This feature, combined with its high efficiency and small package size, makes the AP3405SHE-7 an excellent choice for designers looking to optimize power management in their next-generation electronic devices.
