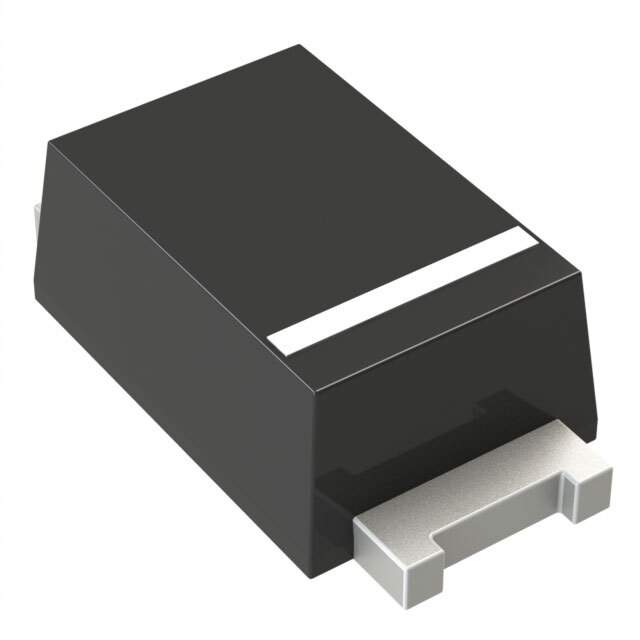

The B160S1F-7 is a high-efficiency, surface-mount Schottky Barrier Rectifier designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This rectifier is engineered to offer low forward voltage drop and high current capability, making it an ideal choice for a variety of applications that require efficient power management.

Key Features

• Low Power Loss: The B160S1F-7 features a low forward voltage drop, which minimizes power loss and improves efficiency, especially in low voltage applications.
• High Current Capability: With its ability to handle high currents, this component is suitable for high-load electrical systems.
• High Surge Capability: The device can withstand high surge currents, offering robust performance during transient conditions.
• Surface Mount Package: The SOD-123F package is compact and suitable for automated assembly processes, making it a space-saving solution for modern electronic devices.
• RoHS Compliant: The B160S1F-7 is compliant with RoHS standards, ensuring that it is free from hazardous substances and environmentally friendly.

Applications

The versatility of the B160S1F-7 allows it to be integrated into a wide range of electronic systems. Key applications include:

• Power supply units
• DC-DC converters
• LED lighting
• Battery charging systems
• Reverse voltage protection circuits

Technical Specifications

Parameter Value Maximum Repetitive Reverse Voltage (VRRM) 60V Average Rectified Output Current (Io) 1A Non-Repetitive Peak Forward Surge Current (IFSM) 30A Operating Junction Temperature Range (TJ) -55°C to +150°C Storage Temperature Range (TSTG) -55°C to +150°C

In conclusion, the B160S1F-7 from Diodes Incorporated is a reliable and efficient solution for designers looking to enhance the performance of their power management systems. Its robust design ensures longevity and consistent performance across a wide range of electronic applications.
