Introducing the DF01S-T Bridge Rectifier from Diodes Incorporated

The DF01S-T is a high-quality bridge rectifier component designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This compact and efficient bridge rectifier is engineered to convert alternating current (AC) input into direct current (DC) output, a fundamental process in power supply applications. The DF01S-T is particularly suitable for a wide range of electronic devices and is a preferred choice for design engineers due to its reliability and performance.

Key Features:

• Voltage Capabilities: The DF01S-T is capable of rectifying signals with a maximum repetitive peak reverse voltage of 100V, making it suitable for moderate voltage applications.
• Current Rating: With a forward current rating of 1A, this bridge rectifier can handle a continuous average load, ideal for small to medium power requirements.
• High Surge Current Capacity: Designed to withstand surge currents, the DF01S-T can manage temporary overloads, ensuring reliability and stability in the circuit.
• Low Forward Voltage Drop: The low forward voltage drop feature minimizes power loss and improves efficiency, which is crucial for maintaining the overall performance of the electronic system.

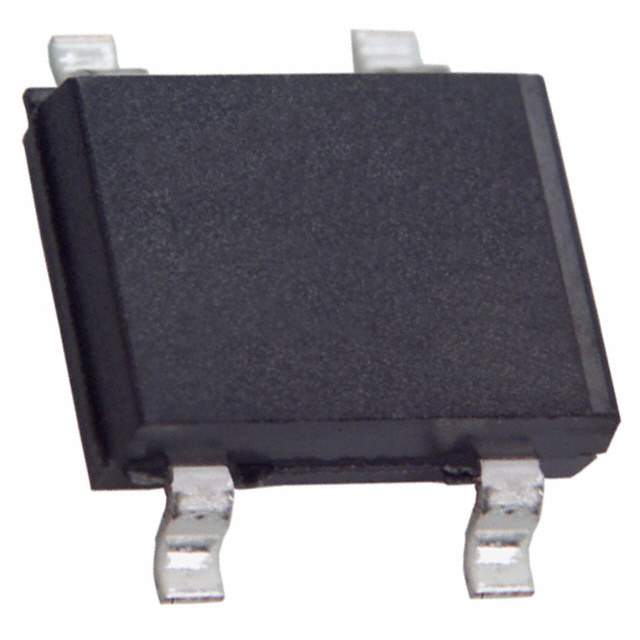

• Compact Package: Encased in a DFS package, the DF01S-T offers a space-saving solution for PCB designs, allowing more room for other components or for miniaturization of the entire system.
• Operating Temperature Range: It operates effectively within a temperature range of -55°C to +150°C, accommodating various environmental conditions without compromising its functionality.

Applications:

The DF01S-T is versatile and can be implemented in numerous applications including:

• Power Management Systems
• Consumer Electronics
• Telecommunication Devices
• LED Lighting
• Adapters and Battery Chargers

Diodes Incorporated's DF01S-T bridge rectifier is a testament to the company's commitment to providing high-quality components that meet the needs of modern electronic systems. Whether you're designing power supplies for consumer electronics or industrial equipment, the DF01S-T offers the performance, durability, and efficiency required for your applications.

For detailed specifications and application notes, visit the Diodes Incorporated website or contact their technical support team for assistance in integrating the DF01S-T into your design.
