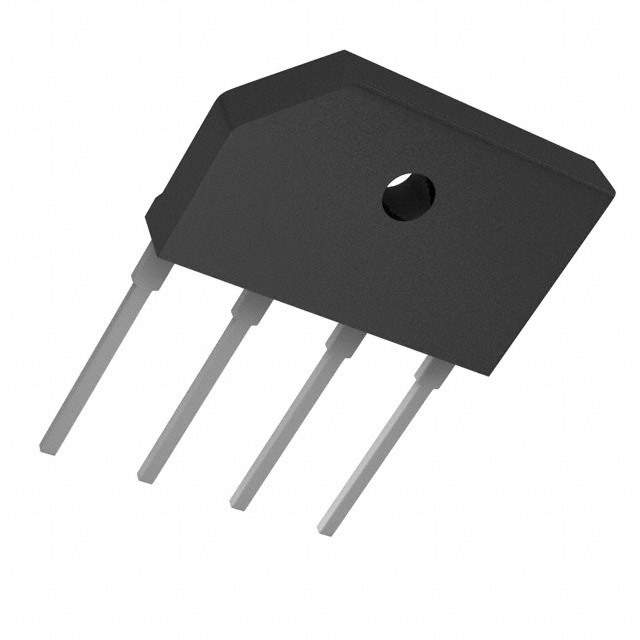

The KBJ601G from Diodes Incorporated is a high-quality single-phase bridge rectifier that is designed to convert alternating current (AC) input into direct current (DC) output. This electronic component is ideal for a wide range of applications, including power supplies, battery chargers, and other electronics that require a stable DC voltage.

Key Features

• High Current Rating: The KBJ601G is capable of handling a high forward current of 6A, making it suitable for applications requiring a substantial current load.
• High Reverse Voltage: With a peak reverse voltage (PRV) of 100V, this bridge rectifier can withstand significant voltage without failure, ensuring reliability in operation.
• Low Forward Voltage Drop: The low forward voltage drop reduces power loss and improves efficiency, which is critical for maintaining the performance of the overall circuit.
• Through-Hole Mounting: The device comes in a KBJ package, which is designed for through-hole mounting, making it easy to install on printed circuit boards (PCBs).
• Wide Operating Temperature Range: The KBJ601G can operate over a temperature range of -55°C to +150°C, accommodating various environmental conditions.

Applications

The robustness and reliability of the KBJ601G make it an excellent choice for use in:

• Power Management Systems
• AC/DC Converters
• Power Supply Units (PSUs)
• Adapters
• Office Equipment
• Home Appliances
• Industrial Equipment

Technical Specifications

Overall, the KBJ601G bridge rectifier from Diodes Incorporated stands out for its robust performance, efficiency, and versatility, making it a staple component in electronic circuits requiring rectification.
