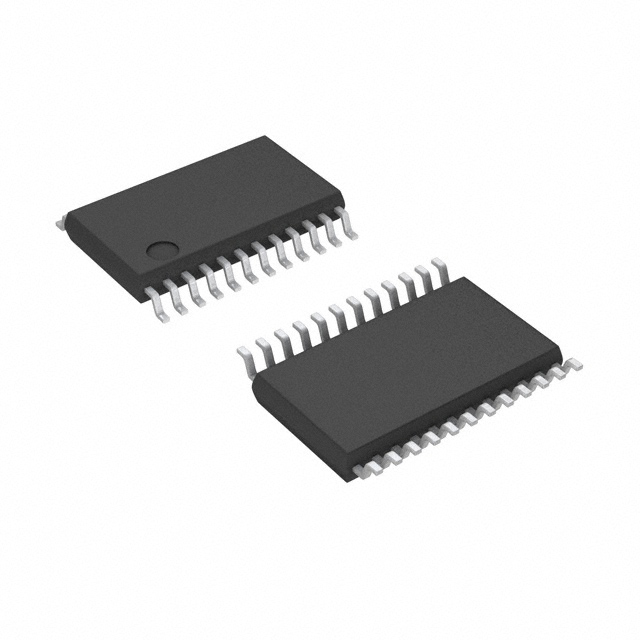

The PAM8906RGR is a state-of-the-art audio amplifier from Diodes Incorporated, designed to deliver high-quality sound while maintaining efficiency and reliability. This innovative audio solution is ideal for a wide range of portable applications, including wireless speakers, Bluetooth headphones, and smart home devices.

Key Features

• High-Efficiency Class-D Operation: The PAM8906RGR operates as a Class-D amplifier, ensuring high efficiency and low power consumption, which is crucial for battery-powered devices.
• Output Power: It is capable of delivering up to 10W of output power into a 4Ω load with a 5V power supply, providing robust audio performance for its size.
• Wide Supply Voltage Range: The device supports a supply voltage range from 2.8V to 5.5V, making it versatile for use in various electronic products.
• Low Quiescent Current: The PAM8906RGR boasts a low quiescent current that further extends battery life in portable applications.
• Thermal and Short-Circuit Protection: Built-in safety features protect the device from overheating and short-circuit conditions, ensuring long-term reliability.
• Minimal External Components: This amplifier is designed to work with minimal external components, simplifying design and reducing overall system cost.

Applications

The PAM8906RGR's compact size and high-efficiency operation make it an excellent choice for a variety of audio applications, including:

• Portable Bluetooth speakers
• Battery-powered audio devices
• Smart home audio systems
• Wireless headphones and earbuds

Summary

The Diodes Incorporated PAM8906RGR audio amplifier is a compact, high-efficiency solution that meets the demands of modern portable audio devices. With its robust power output, wide voltage range, and protection features, it stands out as a reliable choice for designers looking to enhance the audio experience in their products. Whether for personal entertainment or smart home applications, the PAM8906RGR is engineered to deliver superior audio quality while maximizing battery life.
