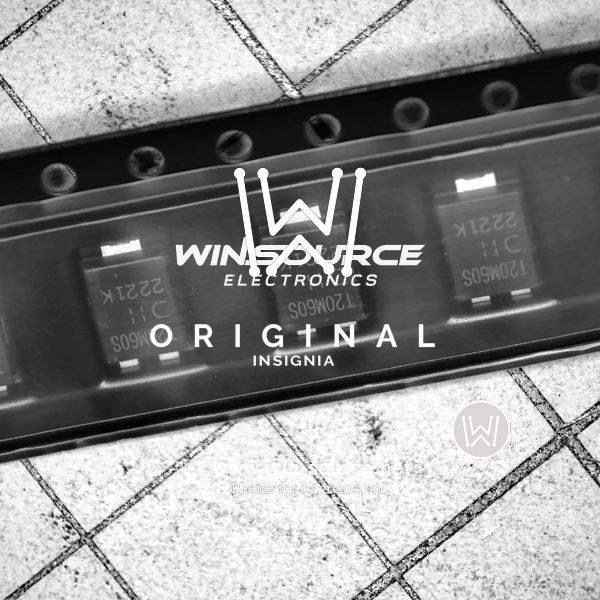

The SBRT20M60SP5-7 is a cutting-edge Super Barrier Rectifier (SBR) from Diodes Incorporated, designed to provide superior performance in power management applications. This rectifier is particularly suitable for high-frequency environments and offers an impressive combination of low forward voltage drop and high current capability, making it an ideal choice for energy-sensitive circuits.

Key Features

• High Surge Capability: With its robust design, the SBRT20M60SP5-7 can handle high surge events, providing reliable protection against transient voltage spikes.
• Low Power Loss: The device features a low forward voltage drop, significantly reducing power loss and improving efficiency in power conversion applications.
• High Current Rating: This SBR can conduct a high amount of current, up to 20A, making it suitable for high-power applications.
• Temperature Resilience: It operates effectively over a wide temperature range, ensuring performance stability under varying environmental conditions.
• Lead-Free and RoHS Compliant: The SBRT20M60SP5-7 adheres to environmental regulations, being lead-free and RoHS compliant, which makes it an environmentally friendly choice for electronic designs.

Applications

The versatility of the SBRT20M60SP5-7 allows it to be used in a variety of applications, including:

• Power Supply Units (PSUs)
• Lighting Systems
• Automotive Charging Systems
• DC-DC Converters
• Adapters and Battery Chargers

Product Specifications

The SBRT20M60SP5-7 boasts a 600V reverse voltage rating and a forward current of 20A. Its power dissipation is optimized for high-efficiency power systems. The package type for this SBR is PowerDI®5, which is known for its compact footprint and low profile, making it suitable for space-constrained applications.

Conclusion

As a product of Diodes Incorporated, a leading manufacturer in the semiconductor market, the SBRT20M60SP5-7 Super Barrier Rectifier stands out for its efficiency, reliability, and performance in high-frequency power management tasks. Whether for industrial, commercial, or automotive applications, this component ensures energy-saving operation and robust protection in a compact package.
