Same model may have multiple batches, images only for reference.

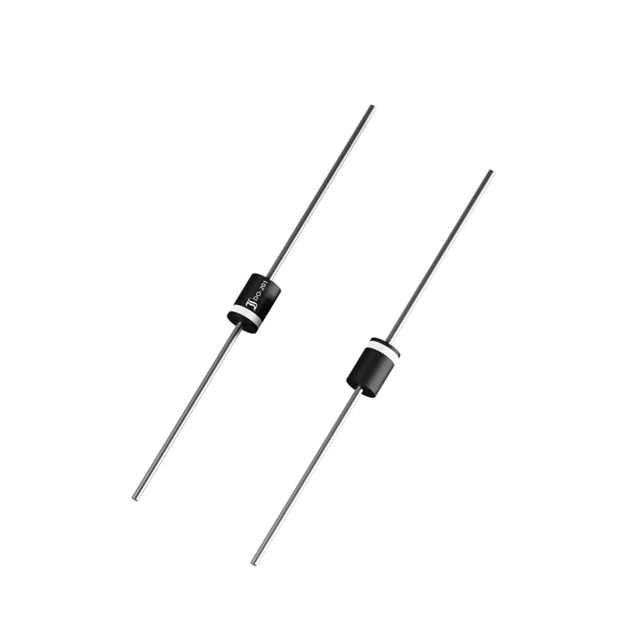

SB1240-3G Real Image
Same model may have multiple batches, images only for reference.

SB1240-3G

Part No SB1240-3G
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Single
Description SCHOTTKY DO-201 40V 12A / Diode Schottky 40 V 12A Through Hole DO-201
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Diotec Semiconductor
Package Tape & Reel (TR)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 12A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 12 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Mounting Type Through Hole
Package / Case DO-201AA, DO-27, Axial
Supplier Device Package DO-201
Operating Temperature - Junction -50°C ~ 150°C
MSL Level Not Applicable
HTSUS 8541.10.0000
Other Names 2796-SB1240-3GTR
Standard Package 1,700
Win Source Part Number 982585-SB1240-3G
Ultra Librarian 3D Model Ultra Librarian SB1240-3G CAD Model

Description

The 982585-SB1240-3G is a Schottky diode that falls under the Diodes - Rectifiers - Single category. 982585-SB1240-3G.

  • Category: Diodes - Rectifiers - Single
  • Maximum Reverse Voltage: 40V
  • Average Rectified Current: 12A
  • Forward Voltage Drop: 550mV @ 12A
  • Reverse Leakage Current: 500μA @ 40V
