NDS-07V Diptronics – Price, Stock & Datasheet

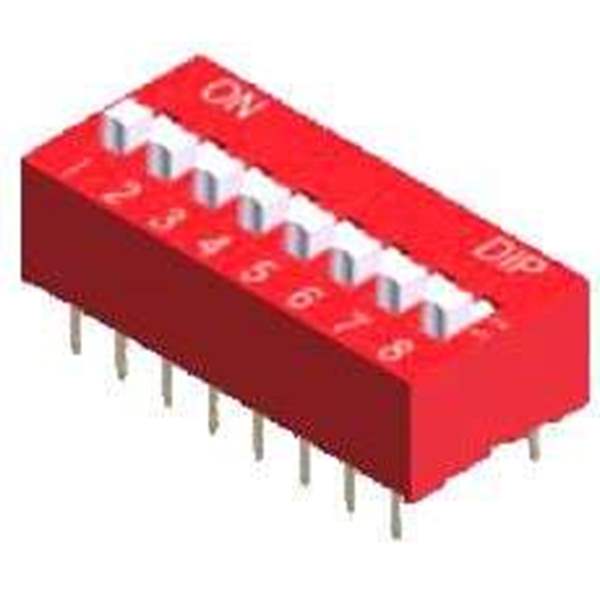

Same model may have multiple batches, images only for reference.

NDS-07V

Part No NDS-07V
Manufacturer Diptronics
Catalog Switches
Description DIP Switches / SIP Switches Dip switch Slide Type
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diptronics
Packaging Tube
Illuminated Non-Illuminated
Number of Positions 7 Position
Switch Type DIP
Actuator Slide
Terminal Pitch 2.54 mm
Contact Form SPST
Termination Style Solder Pin
Current Rating 25 mA
Voltage Rating DC 24 VDC
Series NDS
Brand Diptronics
Mounting Style PCB Mount
Actuator Style Raised
Life 2000 Cycle
Maximum Operating Temperature + 85 C
Minimum Operating Temperature - 40 C
Product Type DIP Switches
Standard Pack Qty 24
Subcategory Switches
Ultra Librarian 3D Model Ultra Librarian NDS-07V CAD Model
