EG1206 E-Switch – Price, Stock & Datasheet

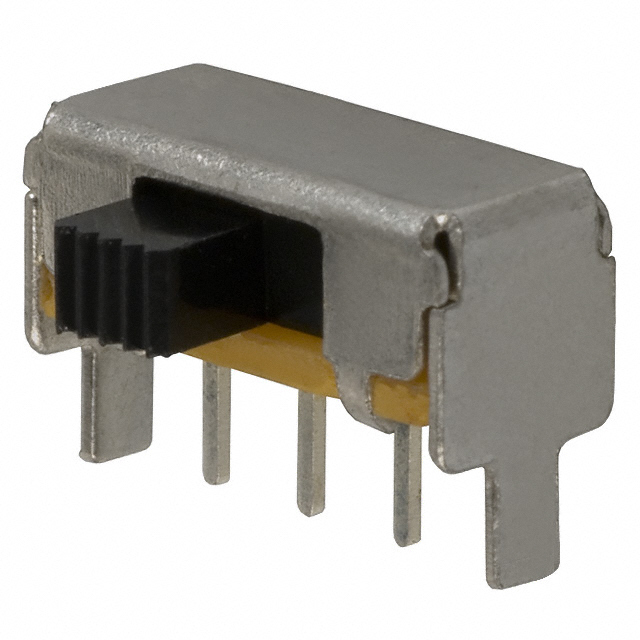

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category SwitchesSlide Switches
Manufacturer E-Switch
Series EG
Packaging Bulk
Part Status Active
Circuit SPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 200mA (DC)
Voltage Rating - DC 30 V
Actuator Type Standard
Actuator Length 3.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Operating Temperature -20°C ~ 70°C
Switch Travel 2.50mm
Operating Force 200gf
Ultra Librarian 3D Model Ultra Librarian EG1206 CAD Model
