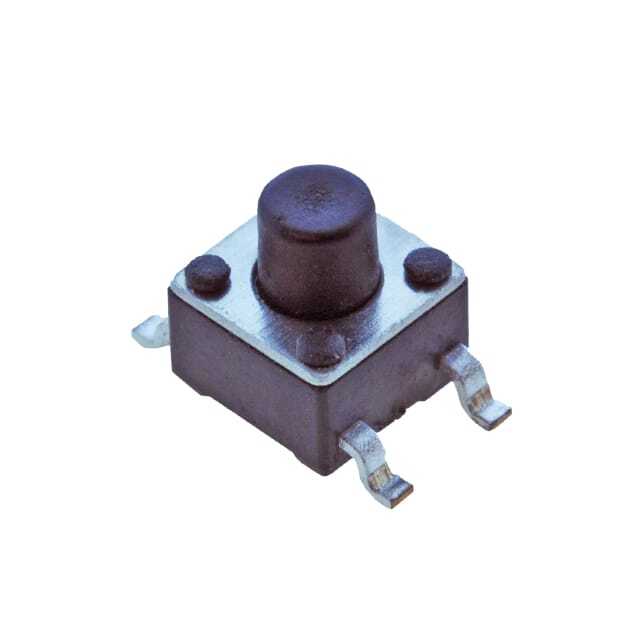

TL3305CF260QG
Same model may have multiple batches, images only for reference.

TL3305CF260QG

Part No TL3305CF260QG
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 50MA 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
TL3305CF260QG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr E-Switch
Series TL3305
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 7.00mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 4.50mm x 4.50mm
Illumination Non-Illuminated
Operating Force 260gf
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 0.20mm
Mechanical Life 200,000 Cycles
Base Product Number TL3305
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 850059-TL3305CF260QG
Ultra Librarian 3D Model Ultra Librarian TL3305CF260QG CAD Model

Description

The 850059-TL3305CF260QG is a standard tactile switch from the TL3305 series by E-Switch.

  • Series: TL3305
  • Switch Type: Tactile
  • Mounting Type: Surface Mount
  • Termination Style: Gull-Wing
  • Contact Rating: 0.05A @ 12VDC
  • Switch Travel: 0.20mm
  • Actuator Height off PCB: 7.00mm
  • Mechanical Life: 200,000 cycles
  • Operating Temperature: -20°C to 70°C
  • Illumination: Non-Illuminated
  • Packaging: Tape & Reel (1,000 pieces)
  • Product Status: Active
