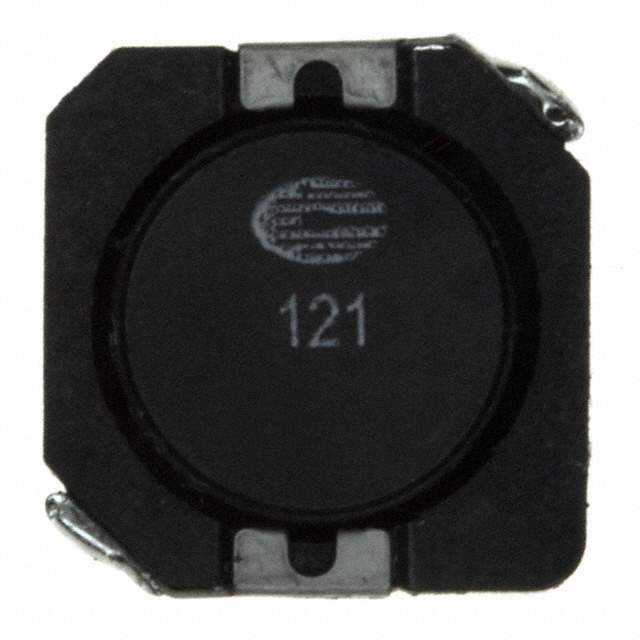

Same model may have multiple batches, images only for reference.

DR1030-121-R

Name: DR1030-121-R
Brand: Eaton Bussmann
SKU: 772821
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	DR1030-121-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 120UH 800MA 602 MOHM / Inductor Power Shielded Drum Core 119uH 30% 100KHz Ferrite 0.8A 0.602Ohm DCR T/R
Datasheet	DR1030-121-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Eaton
Series	DR1030
Packaging	Reel package
Type	Wirewound
Material - Core	Ferrite
Inductance	120μH
Tolerance	±30%
Current Rating	800mA
Current - Saturation	950mA
Shielding	Shielded
DC Resistance (DCR)	602 mOhm Max
Operating Temperature Range	-40°C ~ 125°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Dimension	0.413" L x 0.405" W (10.50mm x 10.30mm)
Height - Seated (Maximum)	0.118" (3.00mm)
Win Source Part Number	772821-DR1030-121-R
Popularity	Medium
Supply and Demand Status	Limited
Family Name	DR1030
Introduction Date	May 26, 2006
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian DR1030-121-R CAD Model

Alternative Products

Description

The Eaton DR1030 series wirewound shielded inductor is designed for use in inductor, coil, and choke applications.

Package: Nonstandard
Mounting Type: SMD
Inductance: 120μH
Current Rating: 800mA
Tolerance: ±30%
DC Resistance (DCR): 602 mOhm max
Dimensions: 0.413 inches L x 0.405 inches W
Core Material: Ferrite
Current Saturation: 950mA
Test Frequency: 100kHz
ECCN: Approved
Popularity: Medium
