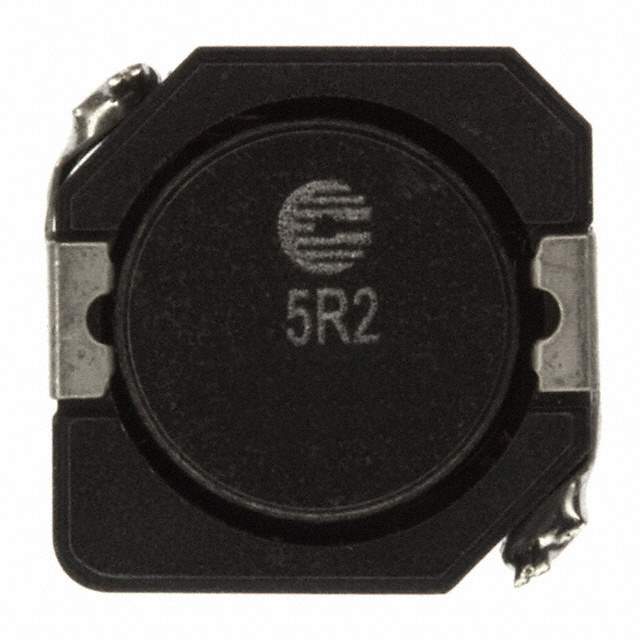

Same model may have multiple batches, images only for reference.

DR1040-5R2-R

Name: DR1040-5R2-R
Brand: Eaton Bussmann
SKU: 1327408
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	DR1040-5R2-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 5.2UH 5.4A 17 MOHM SMD / 5.2 µH Shielded Drum Core, Wirewound Inductor 5.4 A 17mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Eaton - Electronics Division
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	5.2 µH
Tolerance	±30%
Current Rating (Amps)	5.4 A
Current - Saturation (Isat)	5.5A
Shielding	Shielded
DC Resistance (DCR)	17mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.413" L x 0.406" W (10.50mm x 10.30mm)
Height - Seated (Max)	0.157" (4.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	513-1396-1,513-1396-2,513-1396-6,DR10405R2R,Q4156190
Standard Package	850
Win Source Part Number	1327408-DR1040-5R2-R
Ultra Librarian 3D Model	Ultra Librarian DR1040-5R2-R CAD Model

Alternative Products

Description

The DR1040-5R2-R from Eaton - Electronics Division is a fixed inductor used for circuit protection in industrial applications.

Type: Drum core, wirewound
Shielding: Shielded package
Inductance: 5.2 µH
Tolerance: ±30%
DC Resistance (DCR): 17mOhm max
Current Rating: 5.4A
Height-Seated (max): 0.157" (4.00mm)
Dimension: 0.413" L x 0.406" W (10.50mm x 10.30mm)
Package: Reel-TR
Mounting Type: Surface Mount
