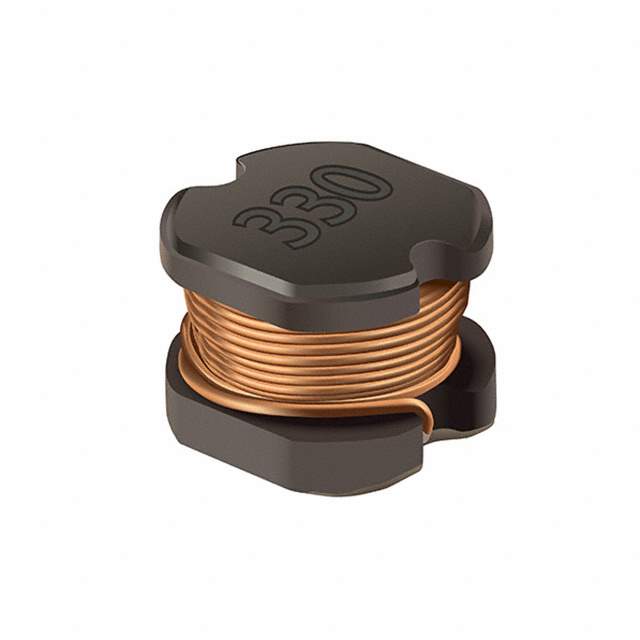

Same model may have multiple batches, images only for reference.

SDE0403A-1R0M

Name: SDE0403A-1R0M
Brand: Bourns Inc.
SKU: 1274937
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SDE0403A-1R0M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SDE0403A-1R0M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SDE0403A
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	2.7 A
Current - Saturation (Isat)	4.8A
Shielding	Unshielded
DC Resistance (DCR)	48mOhm Max
Frequency - Self Resonant	113MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max)	0.138" (3.50mm)
Base Product Number	SDE0403A
Other Names	SDE0403A-1R0MCT,SDE0403A-1R0MTR,SDE0403A-1R0MDKR
Standard Package	2,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274937-SDE0403A-1R0M
Ultra Librarian 3D Model	Ultra Librarian SDE0403A-1R0M CAD Model

Alternative Products

Description

The SDE0403A series from Bourns Inc. is a drum core, wirewound fixed inductor with an inductance of 1 μH and a tolerance of ±20%.

DC Resistance (DCR): 48mOhm max
Current Rating: 2.7 A
Package: Tape & Reel
Package/Case: Nonstandard with dimensions of 0.177" L x 0.157" W (4.50mm x 4.00mm)
Temperature Range: -40°C to 125°C
Suitable for: AEC-Q200 rated applications
