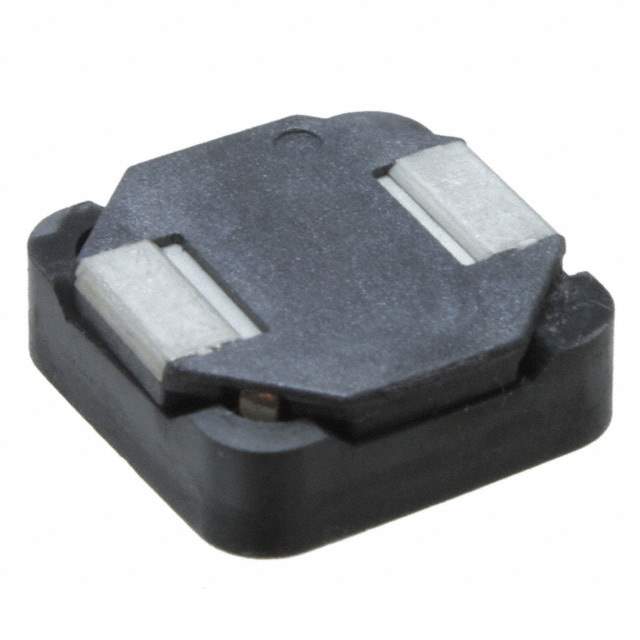

DRA124-221-R Real Image
Same model may have multiple batches, images only for reference.

DRA124-221-R

Part No DRA124-221-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 220UH 865MA 568MOHM SM / 220 µH Shielded Wirewound Inductor 865 mA 568mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Eaton - Electronics Division
Packaging Reel - TR
Type Wirewound
Inductance 220 µH
Tolerance ±20%
Current Rating (Amps) 865 mA
Current - Saturation (Isat) 1.363A
Shielding Shielded
DC Resistance (DCR) 568mOhm
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 165°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.177" (4.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number DRA124221R,283-3555-6,283-3555-2,283-3555-1,DRA124-221-R-ND
Standard Package 750
Win Source Part Number 1327531-DRA124-221-R
Ultra Librarian 3D Model Ultra Librarian DRA124-221-R CAD Model

Description

The Eaton - Electronics Division 1327531-DRA124-221-R is a shielded wirewound inductor that is perfect for use in fixed inductors.

  • Packaging: Reel - TR
  • Size: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Inductance: 220 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 568mOhm
  • Current Rating: 865 mA
  • Temperature Range: -40°C ~ 165°C
  • Ratings: AEC-Q200
  • Current Saturation (Isat): 1.363A
  • ROHS3 Compliant: Yes
  • Mounting: Surface Mount
