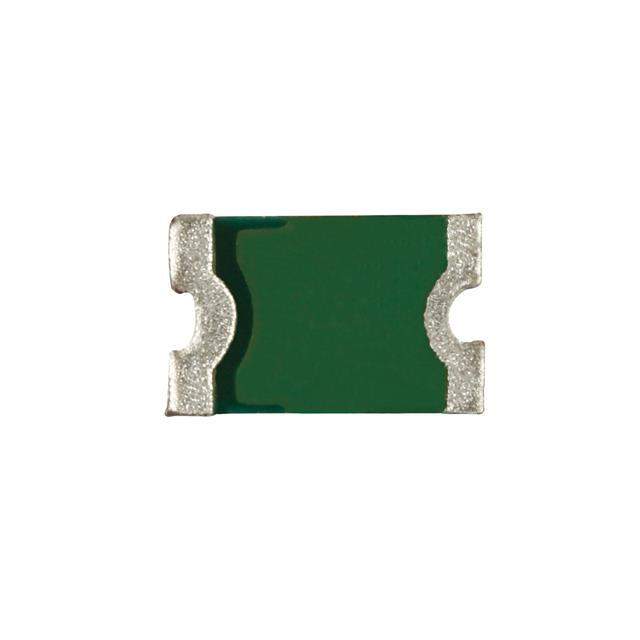

PTSA080515V012 Real Image
Same model may have multiple batches, images only for reference.

PTSA080515V012

Part No PTSA080515V012
Manufacturer Eaton Bussmann
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 120MA 15V 0805 / PTC Resettable Fuse 15V 120 mA Ih Surface Mount 0805 (2012 Metric), Concave
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Eaton - Electronics Division
Series PTSA0805
Package Tape & Reel
Voltage - Max 15V
Current - Max 20 A
Current - Hold (Ih) (Max) 120 mA
Current - Trip (It) 300 mA
Time to Trip 500 ms
Resistance - Initial (Ri) (Min) 400 mOhms
Resistance - Post Trip (R1) (Max) 9 Ohms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric), Concave
Dimension 0.089" L x 0.059" W (2.25mm x 1.50mm)
Thickness (Max) 0.039" (1.00mm)
Approval Agency UL
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names 283-PTSA080515V012DKR,283-PTSA080515V012TR,283-PTSA080515V012CT
Standard Package 4,000
Win Source Part Number 964302-PTSA080515V012
Ultra Librarian 3D Model Ultra Librarian PTSA080515V012 CAD Model

Description

The Eaton PTSA080515V012 is a PTC resettable fuse that has an AEC-Q200 rating.

  • AEC-Q200: Yes
  • Temperature Range: -40°C to 85°C
  • Voltage: 15V
  • Current Rating: 20A
  • Current Hold (Ih): 120mA
  • Current Trip (It): 300mA
  • Time to Trip: 500ms
  • Thickness (max): 0.039" (1.00mm)
  • Resistance - Initial (Ri) (min): 400 mOhms
