Same model may have multiple batches, images only for reference.

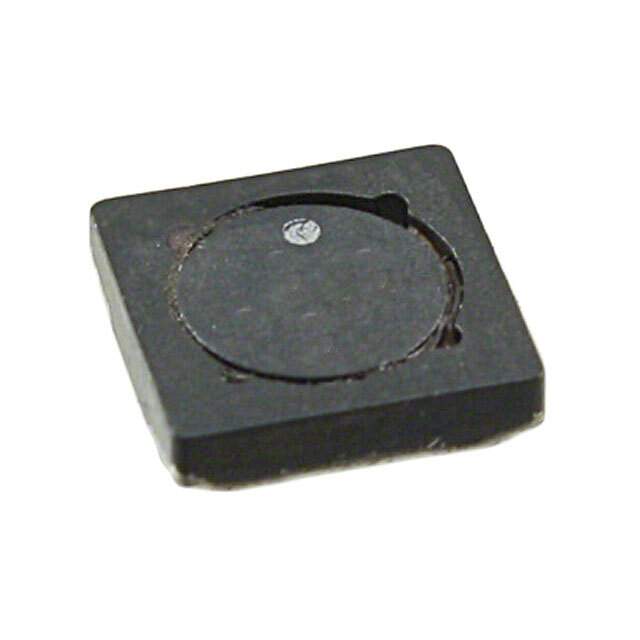

SD12-6R2 Real Image
Same model may have multiple batches, images only for reference.

SD12-6R2

Part No SD12-6R2
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 6.2UH 1.21A 169.9 MOHM
Datasheet
SD12-6R2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 6.2μH
Tolerance ±20%
Current Rating 1.21A
Current - Saturation 1.08A
DC Resistance (DCR) 169.9 mOhm
Temperature Range - Operating -40°C to 85°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 211547-SD12-6R2
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Consumer Electronics, Portable Devices, Industrial
Ultra Librarian 3D Model Ultra Librarian SD12-6R2 CAD Model

Description

The Eaton Bussmann 211547-SD12-6R2 is a wirewound inductor that is perfect for use in various electronic devices.

  • Current Rating: 1.21A
  • Inductance: 6.2μH
  • DC Resistance: 169.9 mOhm
  • Core Material: Ferrite
  • Height: 0.047" (1.20mm)
  • Mounting: SMD (SMT) technology
  • Frequency Test: 100kHz
  • Tolerance: ±20%
  • Current-Saturation: 1.08A
  • Rated for Operation in Temperature Range: -40°C to 85°C
  • Applications: consumer electronics, portable devices, and industrial applications
