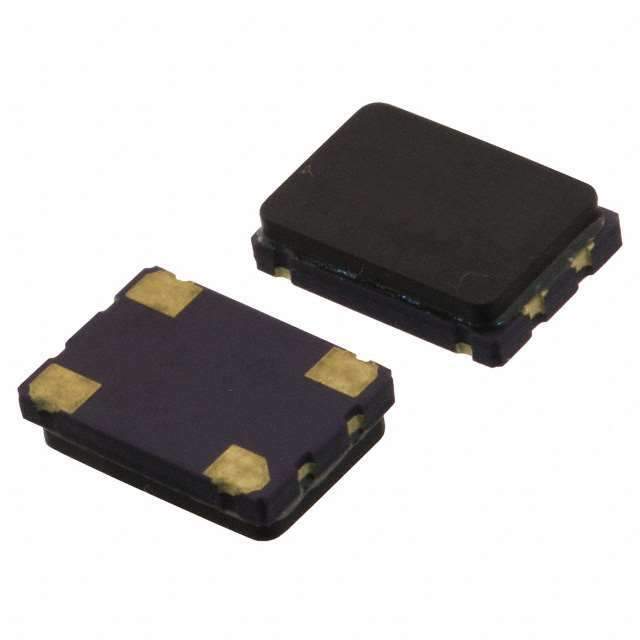

The ECS-3953C-800-TR is a SMD (Surface Mount Device) Crystal Oscillator manufactured by ECS Inc. It provides a stable and accurate clock signal for various electronic applications. The 80.000 MHz frequency designation signifies that it produces a clock signal at 80 MHz. The TR likely indicates tape and reel packaging for automated assembly.

Applications:

• Microcontrollers: Used as a clock source for microcontrollers to synchronize operations and timing.
• Microprocessors: Provides a clock signal for microprocessors to execute instructions and manage data flow.
• Communication Systems: Utilized in communication devices, such as routers and switches, for timing and synchronization.
• Digital Signal Processing (DSP): Used in DSP applications for precise timing and data processing.
• FPGA and PLD: Provides a clock signal for Field-Programmable Gate Arrays (FPGAs) and Programmable Logic Devices (PLDs) to control logic operations.

Features:

• SMD Package: Designed for surface mount assembly, enabling automated manufacturing and compact designs.
• 80.000 MHz Frequency: Provides a stable and accurate clock signal at 80 MHz.
• Tight Frequency Stability: Offers tight frequency stability over a wide temperature range, ensuring reliable performance.
• Low Jitter: Exhibits low jitter, minimizing timing errors and improving signal integrity.
• Wide Operating Temperature Range: Operates over a wide temperature range, making it suitable for various environmental conditions.

Benefits:

• Precise Timing: Provides a stable and accurate clock signal for precise timing and synchronization.
• Reliable Performance: Tight frequency stability and low jitter ensure reliable performance in demanding applications.
• Automated Assembly: SMD package simplifies automated assembly, reducing manufacturing costs and improving efficiency.
• Compact Design: Small footprint enables compact designs and integration into space-constrained applications.
• Versatile Applications: Suitable for a wide range of applications requiring a stable and accurate clock signal.

Additional Details:

The ECS-3953C-800-TR typically operates at a supply voltage of 3.3V or 5V. Frequency stability is typically specified in parts per million (ppm) over a temperature range. Packaging is usually tape and reel for automated placement. Refer to the ECS Inc. datasheet for detailed specifications, including frequency tolerance, load capacitance, and operating temperature range.
