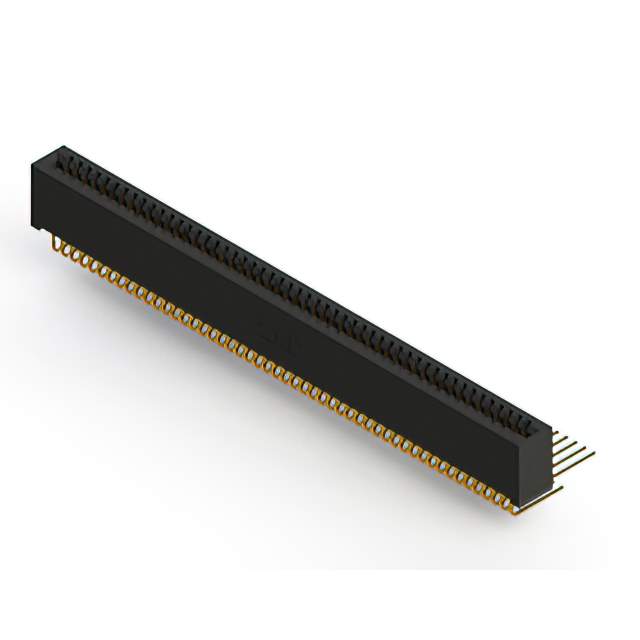

392-102-559-201 Real Image
Same model may have multiple batches, images only for reference.

392-102-559-201

Part No 392-102-559-201
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 392 SERIES (.100" (2.54MM) CONTA / 102 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Datasheet
392-102-559-201 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 392
Package Box
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 51
Number of Positions 102
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Mounting Type Through Hole, Right Angle
Termination Solder, Wire Wrap
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 2
Base Product Number 392-102
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-392-102-559-201
Standard Package 25
Win Source Part Number 1033554-392-102-559-201
Ultra Librarian 3D Model Ultra Librarian 392-102-559-201 CAD Model

Description

The 1033554-392-102-559-201 card edge connector is a dual edge non-specified card type that has 102 positions and a pitch of 0.100" (2.54mm).

  • Card Type: Dual Edge Non-Specified
  • Positions: 102
  • Pitch: 0.100" (2.54mm)
  • Contact Type: Cantilever
  • Termination: Solder or Wire Wrap
  • Perfect for: Use in various electronic applications where a dual edge non-specified card type connector is needed
