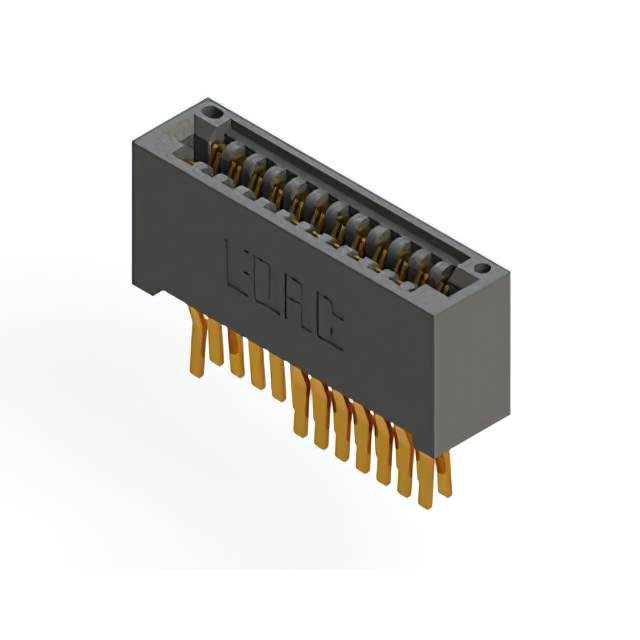

Part No 395-024-560-201
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 395 SERIES (.100" (2.54MM) CONTA / 24 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Datasheet
395-024-560-201 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 395
Package Box
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 12
Number of Positions 24
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Features Card Extender
Mounting Type Board Edge, Straddle Mount
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 2
Base Product Number 395-024
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-395-024-560-201
Standard Package 25
Win Source Part Number 985076-395-024-560-201
Ultra Librarian 3D Model Ultra Librarian 395-024-560-201 CAD Model

Description

The 985076-395-024-560-201 is a female card edge connector with a contact material of copper alloy and a pitch of 0.100" (2.54mm).

  • Number of Positions: 24
  • Feature: Card Extender
  • Contact Type: Cantilever
  • Termination: Solder
  • Contact Finish: Gold with a thickness of 10.0µin (0.25µm)
  • Material Insulation: Polyester Thermoplastic
  • Temperature Range: -40°C ~ 105°C
  • Card Type: Non-specified Dual Edge
  • Number of Positions/Bay/Row: 12
  • Mounting Type: Board Edge, Straddle Mount
  • Standard Package: 25
  • Flange Feature: Not Specified
  • Readout: Dual
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
  • Manufacturer: EDAC Inc.
  • Other Names: 151-395-024-560-201
  • Base Product Number: 395-024
