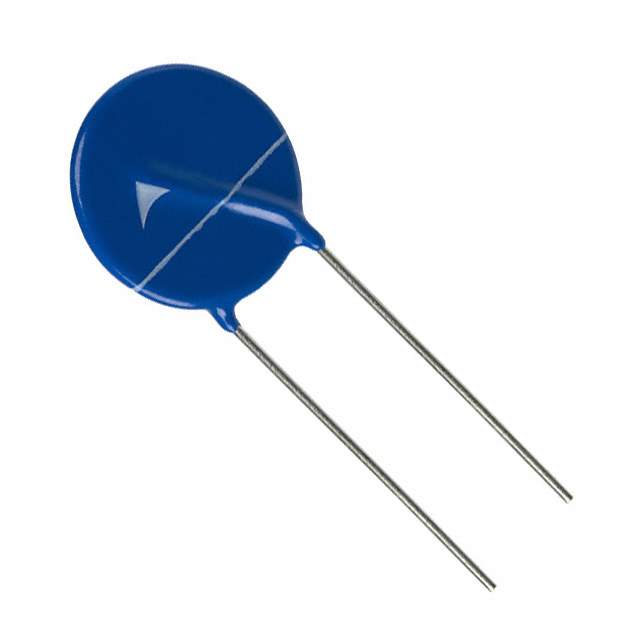

The B72220S141K101 is a metal oxide varistor (MOV) manufactured by EPCOS (TDK). MOVs are critical components used for transient voltage suppression (TVS), effectively safeguarding sensitive electronic circuits from damaging voltage surges and spikes caused by events like lightning, electrostatic discharge (ESD), or inductive switching.

Applications:

• Power Supplies: Essential for protecting power supplies from voltage surges and transients originating from the AC line or internal switching activity.
• Consumer Electronics: Found in devices such as televisions, computers, and audio equipment to guard against ESD and power line disturbances.
• Industrial Equipment: Protects programmable logic controllers (PLCs), motor drives, and other industrial automation equipment from voltage transients that can cause malfunctions or damage.
• Telecommunications Equipment: Safeguards telephone exchanges, network routers, and other telecommunications infrastructure from lightning strikes and power surges.
• Automotive Electronics: Protects sensitive electronic control units (ECUs) in automobiles from voltage spikes generated by the vehicle's electrical system.

Features:

• High Surge Current Handling Capability: Designed to safely divert high surge currents away from protected circuits.
• Fast Response Time: Reacts almost instantaneously to voltage transients, providing rapid protection.
• Wide Operating Voltage Range: Suitable for use in a variety of applications with different voltage requirements.
• Compact Size: Allows for easy integration into space-constrained electronic designs.
• RoHS Compliance: Manufactured in compliance with the Restriction of Hazardous Substances directive, minimizing environmental impact.

Benefits:

• Protection from Voltage Surges: Prevents damage to sensitive electronic components caused by voltage transients.
• Increased System Reliability: Improves the overall reliability and uptime of electronic systems.
• Reduced Downtime: Minimizes downtime associated with component failures due to voltage surges.
• Extended Equipment Lifespan: Prolongs the operational life of electronic equipment.
• Cost-Effective Surge Protection: Provides a relatively inexpensive means of protecting valuable electronic assets.

Additional Details:

The B72220S141K101 MOV is characterized by its key parameters, including varistor voltage, maximum surge current, and energy absorption capability. The varistor voltage is the voltage at which the MOV begins to conduct significant current and clamp the voltage. The surge current rating specifies the maximum current that the MOV can withstand without damage. The energy absorption capability defines the amount of energy the MOV can absorb during a transient event.

The MOV functions by exhibiting a high resistance at normal operating voltages, effectively acting as an open circuit. When a voltage surge occurs, the MOV's resistance rapidly decreases, diverting the surge current through the MOV and clamping the voltage across the protected circuit to a safe level. This clamping action prevents the voltage from exceeding the voltage tolerance of sensitive components.

EPCOS (TDK) is a leading global manufacturer of MOVs, offering a comprehensive portfolio of products for diverse surge protection applications. Their MOVs are known for their robust performance, high reliability, and long-term stability.
