Same model may have multiple batches, images only for reference.

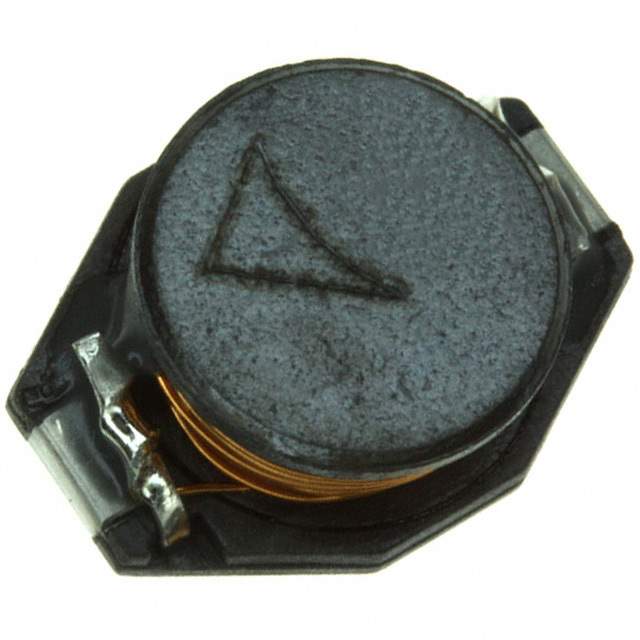

B82476A1223M Real Image
Same model may have multiple batches, images only for reference.

B82476A1223M

Part No B82476A1223M
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 22UH 2.7A 50 MOHM SMD
Datasheet
B82476A1223M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 2.7A
Current - Saturation 2.6A
DC Resistance (DCR) 50 mOhm Max
Temperature Range - Operating -55°C to 150°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.200" (5.08mm)
Win Source Part Number 000144-B82476A1223M
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B82476A1223M CAD Model

Description

Description

The B82476A1223M is a versatile inductor, tailored for use in general electronic applications where energy efficiency and reliability are critical.

Features and Benefits

  • Efficient energy conservation through optimized magnetic properties.
  • Versatile application range with stable inductance values.
  • Durable construction for long-term use.

Applications

  • Switch-mode power supplies.
  • Signal filtering in communication equipment.
  • Voltage regulation circuits.

Additional Details

This inductor offers an ideal balance between performance and cost, making it suitable for a wide range of electronic designs.
