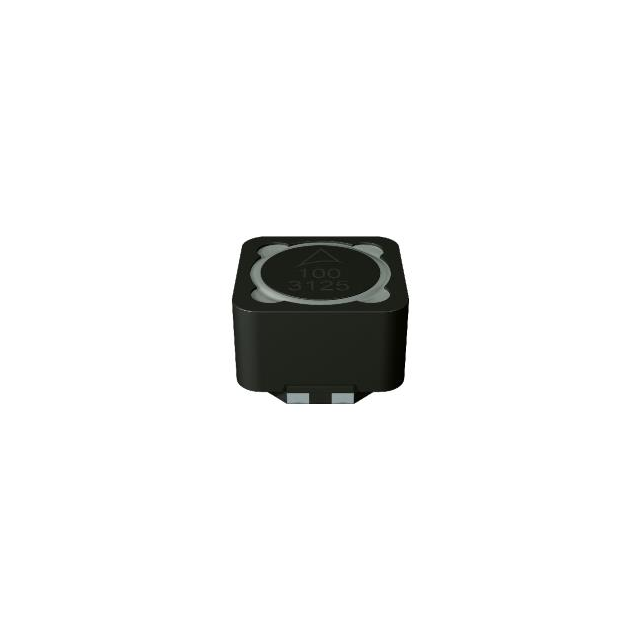

Same model may have multiple batches, images only for reference.

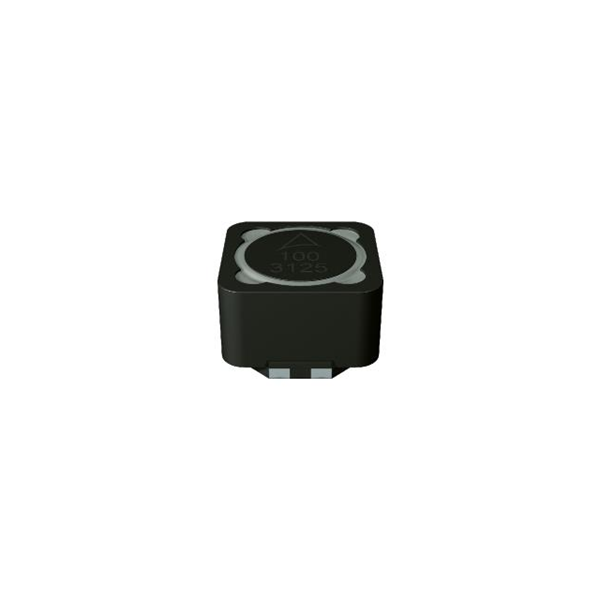

B82477D4333M000 Real Image
Same model may have multiple batches, images only for reference.

B82477D4333M000

Part No B82477D4333M000
Manufacturer EPCOS (TDK)
Catalog Arrays, Signal Transformers
Description FIXED IND 33UH 2.3A 110 MOHM SMD / Shielded 2 Coil Inductor Array 132 µH Inductance - Connected in Series 33 µH Inductance - Connected in Parallel 55mOhm Max DC Resistance (DCR) - Parallel Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr EPCOS - TDK Electronics
Series B82477D4
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 33 µH
Inductance - Connected In Series 132 µH
Tolerance ±20%
Current Rating - Series 2.3 A
Current Saturation - Parallel 3.8 A
Current Saturation - Series 1.9 A
DC Resistance (DCR) - Parallel 55mOhm Max
DC Resistance (DCR) - Series 220mOhm Max
Shielding Shielded
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.335" (8.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names B82477D4333M000-ND,495-B82477D4333M000TR,B82477D4333M,495-B82477D4333M000CT,B82477D4333M-ND,495-B82477D4333M000DKR
Standard Package 350
Win Source Part Number 1172368-B82477D4333M000
Ultra Librarian 3D Model Ultra Librarian B82477D4333M000 CAD Model

Description

This B82477D4 series shielded inductor is a high-quality electronic component manufactured by EPCOS - TDK Electronics.

  • Standard Package: 350
  • Mounting Type: SMD (SMT)
  • Coils: 2
  • Height: 0.335 inches (8.50mm)
  • Inductance (Series): 132 µH
  • Inductance (Parallel): 33 µH
  • Current Rating (Series): 2.3 A
  • Current Rating (Parallel - Saturated): 3.8 A
  • DCR (Parallel): 55mOhm Max
  • DCR (Series): 220mOhm Max
  • AEC-Q200: Yes
  • Temperature Range: -55°C to 150°C
  • Dimension: 0.492 inches L x 0.492 inches W (12.50mm x 12.50mm)
