Same model may have multiple batches, images only for reference.

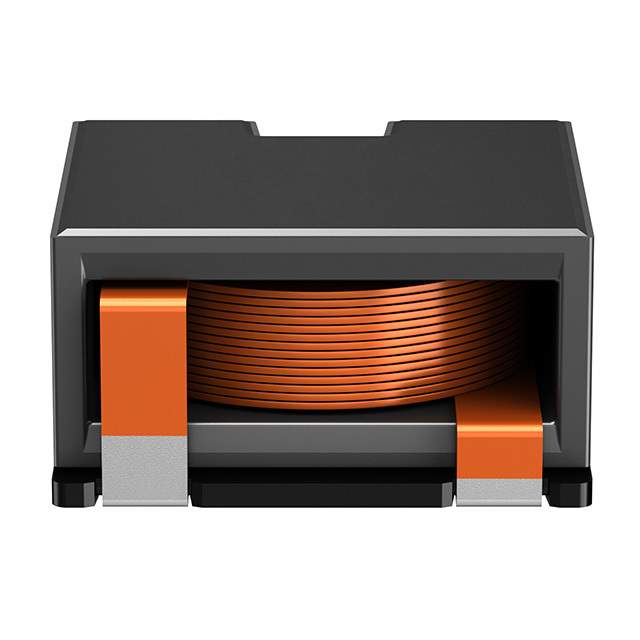

B82559B7103A016 Real Image
Same model may have multiple batches, images only for reference.

B82559B7103A016

Part No B82559B7103A016
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 10UH 13A 7.2 MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 13 A 7.2mOhm Nonstandard, 3 Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr EPCOS - TDK Electronics
Series ERU16 - Flat Wire Inductor
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±10%
Current Rating (Amps) 13 A
Current - Saturation (Isat) 14.6A
Shielding Shielded
DC Resistance (DCR) 7.2mOhm
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard, 3 Lead
Dimension 0.681" L x 0.650" W (17.30mm x 16.50mm)
Height - Seated (Max) 0.333" (8.45mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names B82559B7103A 16,495-B82559B7103A016TR,495-B82559B7103A016DKR,495-B82559B7103A016CT
Standard Package 280
Win Source Part Number 1009681-B82559B7103A016
Ultra Librarian 3D Model Ultra Librarian B82559B7103A016 CAD Model

Description

The EPCOS (TDK) B82559B7103A016 is a surface mount drum core wirewound inductor with a ferrite core material.

  • Inductance: 10 µH
  • Tolerance: ±10%
  • Current Rating: 13 A
  • DC Resistance: 7.2mOhm
  • Self-Resonant Frequency: Not Specified
  • Q @ Freq: Not Specified
  • Shielding: Shielded
  • Case/Package: Nonstandard, 3 lead
  • AEC-Q200 Rated: Yes
  • Operating Temperature Range: -40°C to 150°C
  • Height: 0.333" (8.45mm)
  • Dimension: 0.681" L x 0.650" W (17.30mm x 16.50mm)
  • RoHS Compliant: Yes
  • ECCN: EAR99
