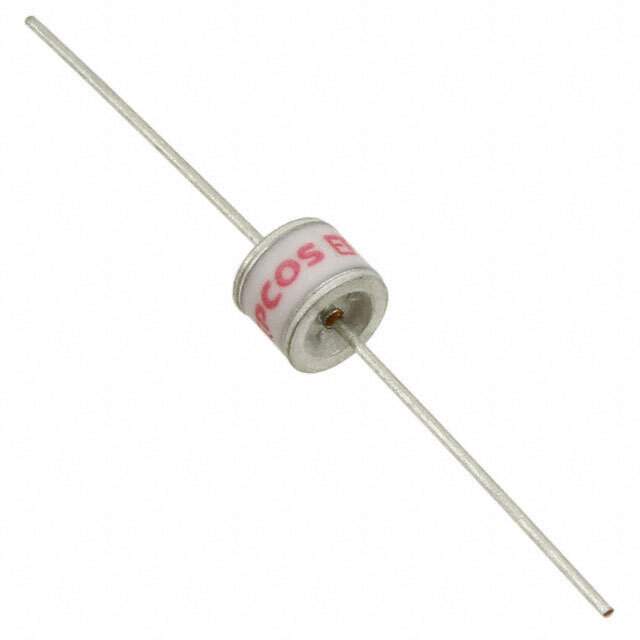

The EPCOS (TDK) EF2500X is a gas-filled surge arrester, also known as a Gas Discharge Tube (GDT). It is designed to protect sensitive electronic equipment from transient overvoltage events caused by lightning strikes, power surges, and electrostatic discharge (ESD). The EF2500X provides a low-impedance path to ground when a high-voltage surge occurs, diverting the excess energy away from the protected circuitry. This helps to prevent damage and ensure the continued operation of the equipment.

Applications

• Telecommunication equipment (telephone lines, DSL modems)
• Surge protection devices (power strips, in-line protectors)
• Industrial control systems
• Power supplies
• Security systems
• Outdoor lighting

Features

• High surge current capability: Capable of handling significant surge currents, ensuring robust protection.
• Low capacitance: Minimizes signal distortion, making it suitable for high-frequency applications.
• Fast response time: Quickly clamps the voltage during a surge event, preventing damage to sensitive components.
• RoHS compliant: Complies with environmental regulations, making it suitable for global use.
• Compact size: Allows for easy integration into various electronic devices.
• High insulation resistance: Maintains a high level of insulation under normal operating conditions.

Benefits

• Protection against overvoltage transients: Prevents damage to electronic equipment from lightning strikes and power surges.
• Improved system reliability: Reduces the risk of equipment failure and downtime.
• Enhanced safety: Protects users from electrical hazards.
• Extended equipment lifespan: Prolongs the life of electronic devices by preventing damage from overvoltage events.
• Cost savings: Reduces the need for costly repairs and replacements.
• Compliance with safety standards: Meets industry safety standards for surge protection.

Additional Details

The EF2500X has a typical surge current rating of 2.5kA (8/20 μs waveform). Its DC spark-over voltage is typically 230V. It features a two-electrode construction. This GDT is designed for through-hole mounting. The device’s low capacitance and fast response time make it suitable for a wide range of applications requiring reliable surge protection.
