Same model may have multiple batches, images only for reference.

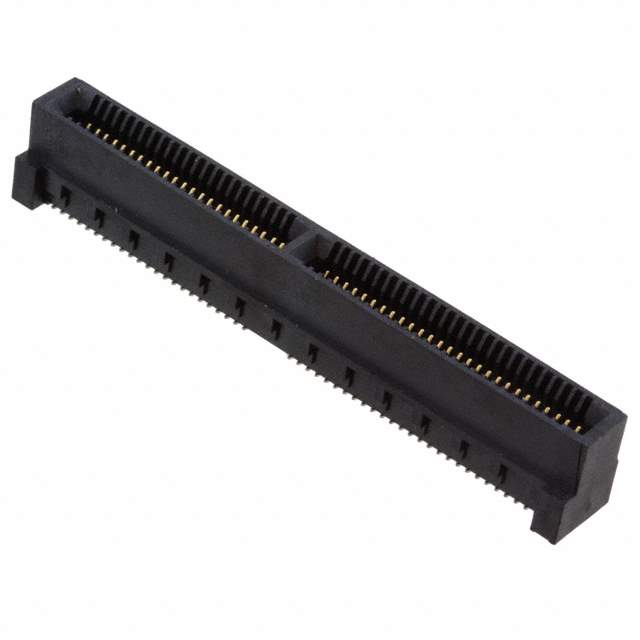

SPD08-100-RB-TR Real Image
Same model may have multiple batches, images only for reference.

SPD08-100-RB-TR

Part No SPD08-100-RB-TR
Manufacturer 3M
Catalog Card Edge Connectors - Edgeboard Connectors
Datasheet
SPD08-100-RB-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr 3M
Series SPD08
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 100
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.031" (0.80mm)
Read Out Dual
Features Board Guide
Mounting SMD (SMT)
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP), Glass Filled
Base Product Number SPD08
Other Names 7000107394,00076308602543,XF003826963,3M12041TR,SPD08100RBTR,3M12041DKR,3M12041CT
Standard Package 1,600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
Win Source Part Number 1294259-SPD08-100-RB-TR
Ultra Librarian 3D Model Ultra Librarian SPD08-100-RB-TR CAD Model

Description

The 3M SPD08-100-RB-TR is a card edge connector used for edgeboard connections.

  • Positions: 100
  • Pitch: 0.031" (0.80mm)
  • Gender: Female
  • Insulation Material: Liquid crystal polymer (LCP), glass filled
  • Color: Black
  • Contact Type: Cantilever
  • Contact Material: Copper alloy
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Mounting: SMD (SMT)
  • Temperature Range for Operating: -55°C ~ 125°C
