Same model may have multiple batches, images only for reference.

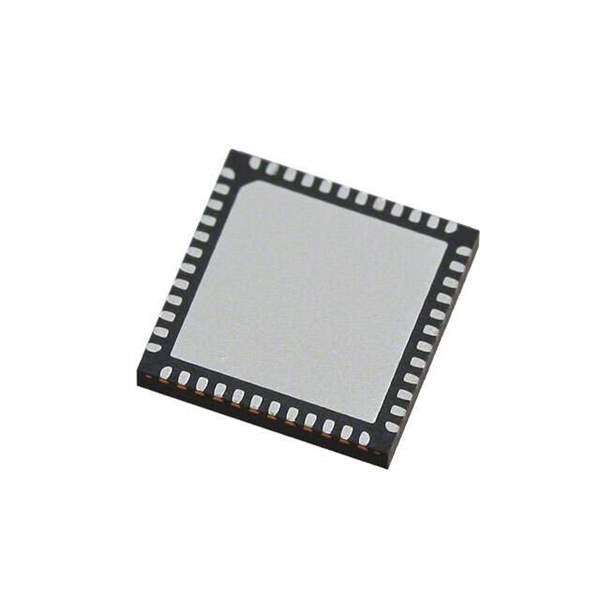

XR16M554IL48-F Real Image
Same model may have multiple batches, images only for reference.

XR16M554IL48-F

Part No XR16M554IL48-F
Manufacturer Exar Corporation
Catalog Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Description IC UART FIFO 16B QUAD 48QFN
Datasheet
XR16M554IL48-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Exar Corporation
Packaging Tray
Status Obsolete(EOL)
Features Internal Oscillator, Timer/Counter
Number of Channels 4, QUART
FIFO's 16 Byte
Protocol RS232
Data Rate (Max) 4Mbps
Supply Voltage - Operating 1.62 V to 3.63 V
With Auto Flow Control Yes
With False Start Bit Detection Yes
With Modem Control Yes
Mounting SMD (SMT)
Case / Package 48-QFN-EP (7x7)
Win Source Part Number 044002-XR16M554IL48-F
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian XR16M554IL48-F CAD Model

Description

The XR16M554IL48-F is a quad-channel UART with an internal oscillator and timer/counter manufactured by Exar Corporation. It is designed to provide high-speed data transfer and auto flow control for various industrial applications.

  • Status: Obsolete (EOL)
  • Supply and Demand Status: limited
