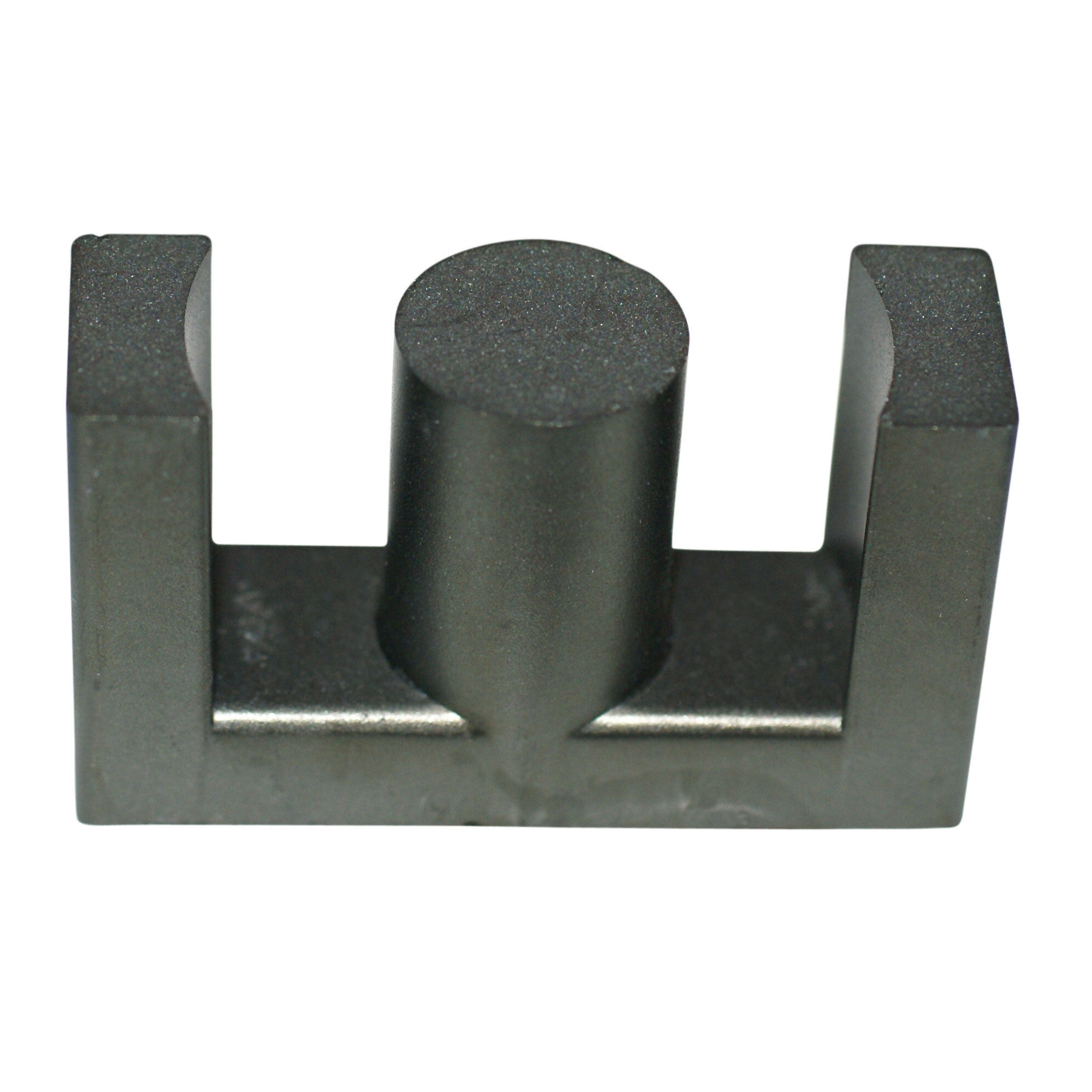

9578110502 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

9578110502

Part No 9578110502
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores
Description FERRITE CORE E 78 SET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type E
Material 78
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 2300
Core Factor (ΣI/A) mm⁻¹ 112.0
Effective Length (le) mm 14.0
Effective Area (Ae) mm2 12.6
Minimum Core Cross Section (Amin) mm2 10.3
Effective Magnetic Volume (Ve) mm3 177.0
Finish Uncoated
Package Bulk
Supply and Demand Status Limited
Win Source Part Number 1528160-9578110502
Ultra Librarian 3D Model Ultra Librarian 9578110502 CAD Model
