Same model may have multiple batches, images only for reference.

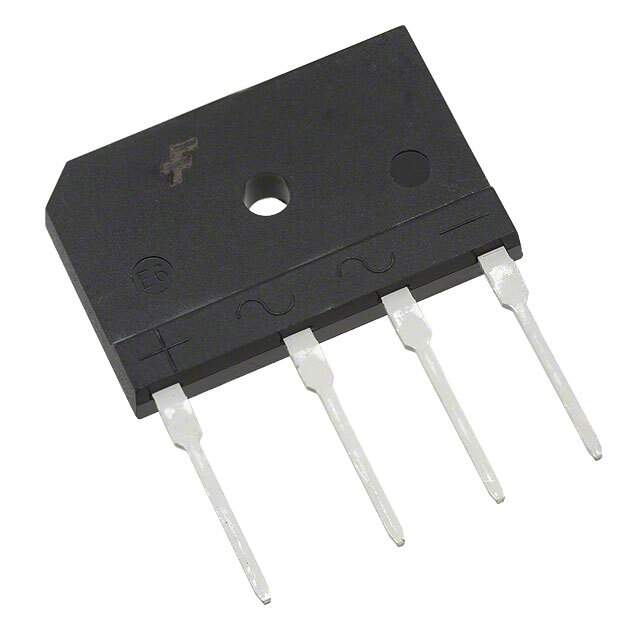

DFB2540 Real Image
Same model may have multiple batches, images only for reference.

DFB2540

Part No DFB2540
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description IC BRIDGE RECT 400V 25A TS6P-4
Datasheet
DFB2540 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400V
Current - Average Rectified (Io) 25A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 25A
Current - Reverse Leakage @ Vr 10μA @ 400V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TS-6P
Win Source Part Number 014150-DFB2540
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1,200
Ultra Librarian 3D Model Ultra Librarian DFB2540 CAD Model

Description

Description

The DFB2540 is a robust and versatile electronic component known for its high efficiency and reliability. This component is commonly used in various electrical applications, ensuring optimal performance and durability.

Features and Benefits

  • High Efficiency: Designed to provide superior energy conversion, reducing energy loss and heat generation.
  • Reliability: Manufactured with high-quality materials for long-lasting performance.
  • Compact Design: Space-saving design suitable for compact devices.

Applications

  • Power Supplies
  • Inverter Circuits
  • Motor Control Systems
  • Battery Chargers
