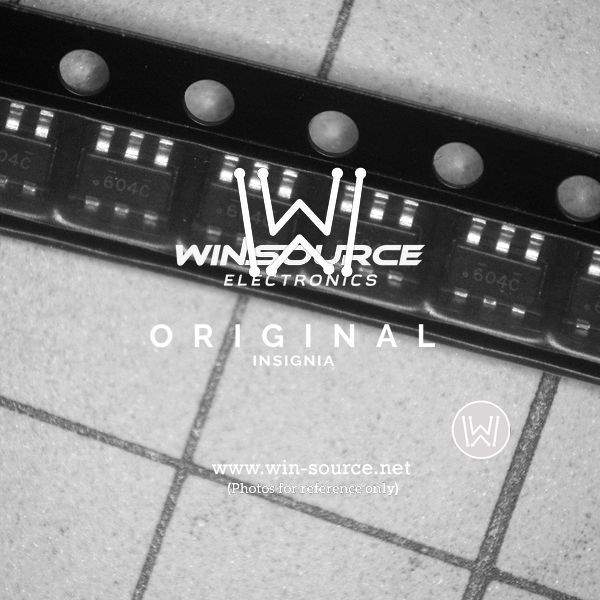

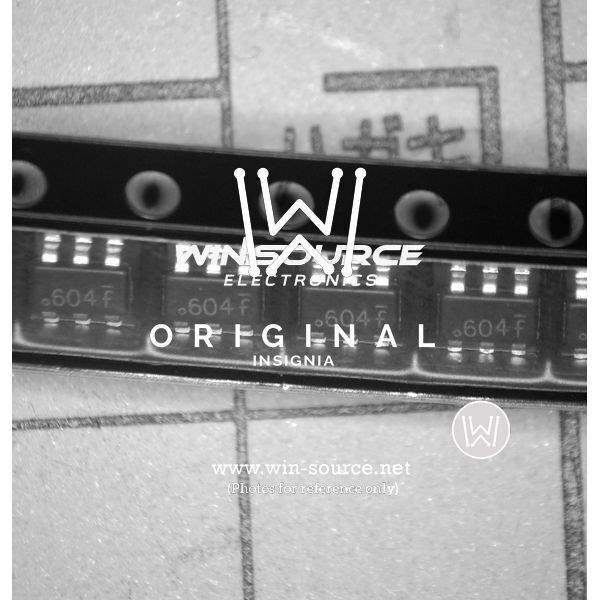

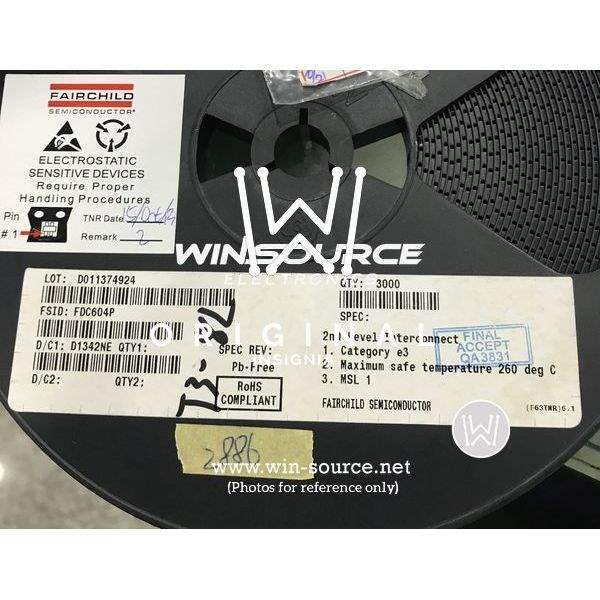

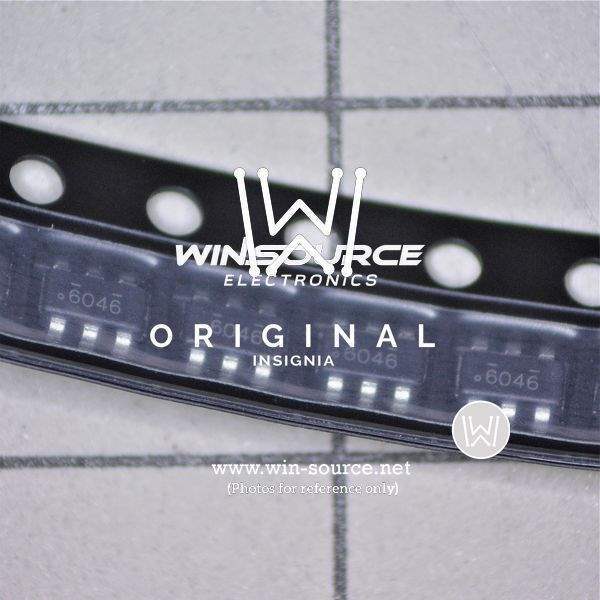

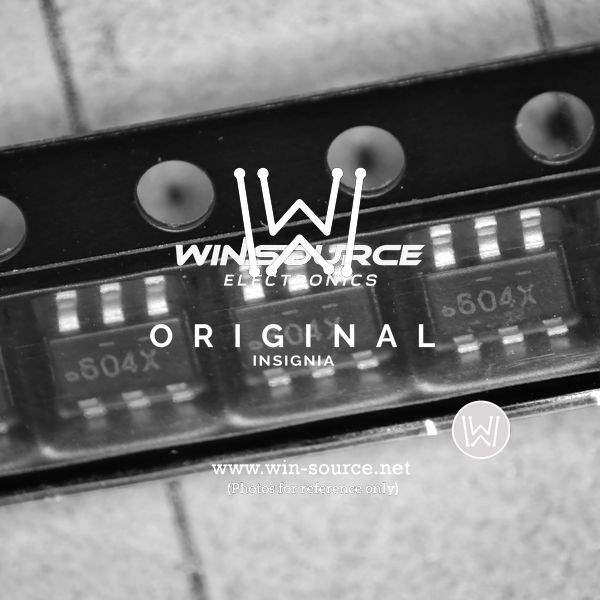

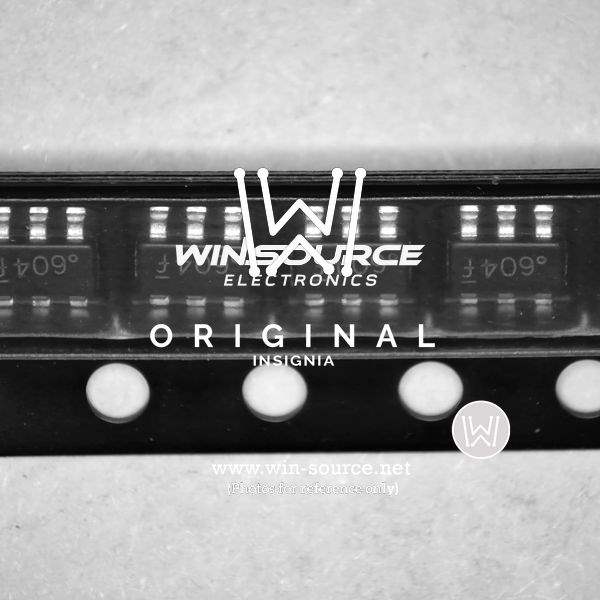

FDC604P Real Image FDC604P label picture FDC604P real image FDC604P real image4012 FDC604P real image4013 FDC604P Real Image1 FDC604P Real Image2
Same model may have multiple batches, images only for reference.
FDC604P Real Image FDC604P label picture FDC604P real image FDC604P real image4012 FDC604P real image4013 FDC604P Real Image1 FDC604P Real Image2
FDC604P Real Image FDC604P label picture FDC604P real image FDC604P real image4012 FDC604P real image4013 FDC604P Real Image1 FDC604P Real Image2
Same model may have multiple batches, images only for reference.

FDC604P

Part No FDC604P
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 5.5A SSOT-6
Datasheet
FDC604P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 5.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Gate-Source Threshold Voltage 1.5V @ 250μA
Max Gate Charge 30nC @ 4.5V
Max Input Capacitance 1926pF @ 10V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 1.6W (Ta)
Maximum Rds On at Id,Vgs 33 mOhm @ 5.5A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SuperSOT-6
Dimension SOT-23-6 Thin, TSOT-23-6
Win Source Part Number 001127-FDC604P
Family Name FDC604P
Introduction Date July 05, 2000
ECCN EAR99
Country of Origin Israel, Philippines
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDC604P CAD Model

Description

FDC604P

The FDC604P is a compact, high-efficiency P-channel MOSFET, perfect for applications demanding reliable performance and minimal power loss. Its compact size and enhanced efficiency make it suitable for portable and wireless devices.

  • Applications:
    • Portable devices
    • Wireless communication equipment
    • Embedded systems
  • Features and Benefits:
    • High energy efficiency for extended battery life
    • Small footprint enhances design flexibility
    • Fast response times for improved system performance

Additional Details: The FDC604P is designed to prioritize efficiency and space-saving, making it an excellent choice for modern, compact electronic solutions.
