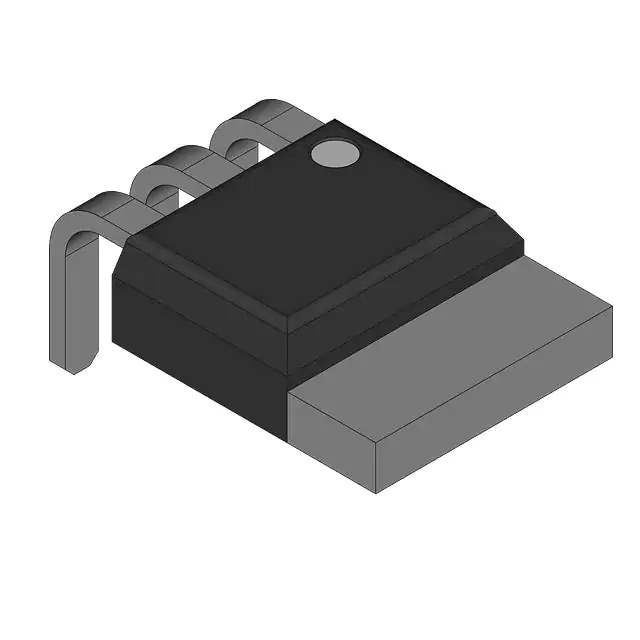

FDU6680A Real Image
Same model may have multiple batches, images only for reference.

FDU6680A

Part No FDU6680A
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description N-CHANNEL  POWER MOSFET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Fairchild/ON Semiconductor
Series PowerTrench®
Package Bulk
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 14A (Ta), 56A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 9.5mOhm @ 14A, 10V
Vgs(th) (Max) @ Id 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 20 nC @ 5 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1425 pF @ 15 V
Power Dissipation (Max) 1.3W (Ta), 60W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Supplier Device Package I-PAK
Package / Case TO-251-3 Short Leads, IPak, TO-251AA
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 130053-FDU6680A
Ultra Librarian 3D Model Ultra Librarian FDU6680A CAD Model

Description

The 130053-FDU6680A is a PowerTrench® N-Channel MOSFET transistor manufactured by Fairchild/ON Semiconductor.

  • Drain to Source Voltage (Vdss): 30V
  • Continuous Drain Current (Id): 14A @ 25°C (Ta), 56A @ 25°C (Tc)
  • On-Resistance (Rds On): 9.5mOhm (max) @ Id=14A, Vgs=10V
  • Power Dissipation: 1.3W @ 25°C (Ta), 60W @ 25°C (Tc)
  • Mounting Type: Through-Hole
  • Package: TO-251-3 Short Leads, IPak
  • Gate Charge (Qg): 20nC @ Vgs=5V
  • Input Capacitance (Ciss): 1425pF @ Vds=15V
  • Status: Active
