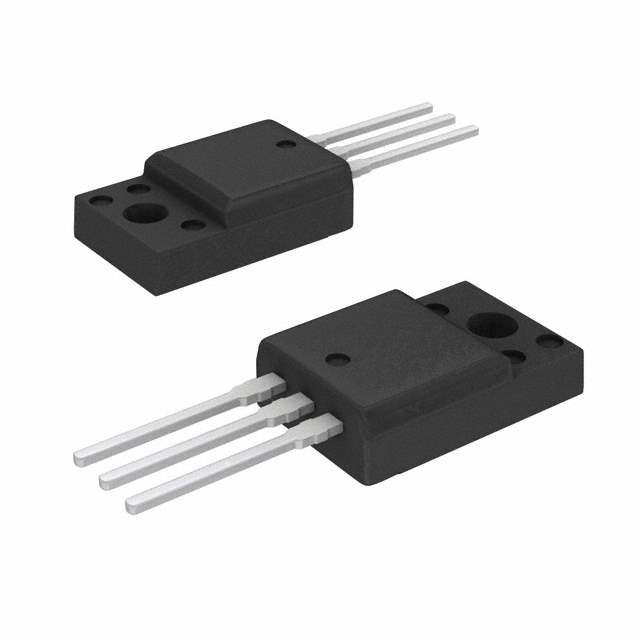

FJPF9020TU

Name: FJPF9020TU
Brand: Fairchild/ON Semiconductor
SKU: 130746
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	FJPF9020TU
Manufacturer	Fairchild/ON Semiconductor
Catalog	Transistors (BJT) - Single
Description	TRANS PNP DARL 550V 2A TO-220F
Datasheet	FJPF9020TU Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Fairchild/ON Semiconductor
Packaging	Tube/Rail
Status	Obsolete(EOL)
Transistor Polarity	PNP - Darlington
Maximum Current Collector	2A
VCEO Maximum Collector-Emitter Breakdown Voltage	550V
Max Vce (sat)	1.5V @ 20mA, 1A
Collector Cut-off Current(Max)	100μA (ICBO)
Typical Gain (hFE) (Min)	400 @ 1A, 4V
Maximum Power Dissipation	15W
Temperature Range - Operating	150°C (TJ)
Mounting	Through Hole
Case / Package	TO-220F
Win Source Part Number	094023-FJPF9020TU
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian FJPF9020TU CAD Model

Alternative Products

Description

The Fairchild/ON Semiconductor FJPF9020TU is a PNP Darlington transistor.

Maximum Collector Current: 2A
Collector-Emitter Breakdown Voltage: 550V
Mounting: Through-Hole
Case/Package: TO-220F
Typical Gain: 400 at 1A and 4V
Maximum Power Dissipation: 15W
Maximum Voltage Drop (Vce): 1.5V at 20mA and 1A
Supply and Demand: Limited
