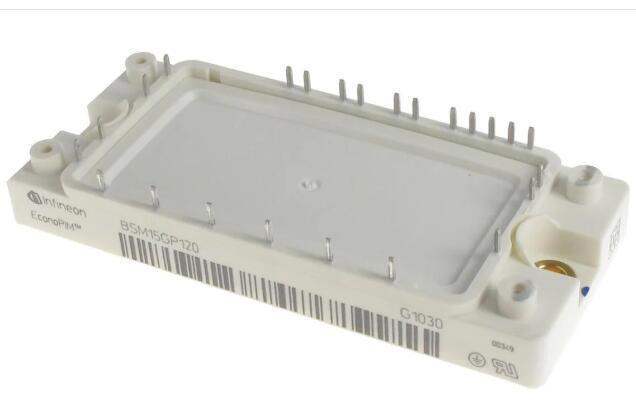

Same model may have multiple batches, images only for reference.

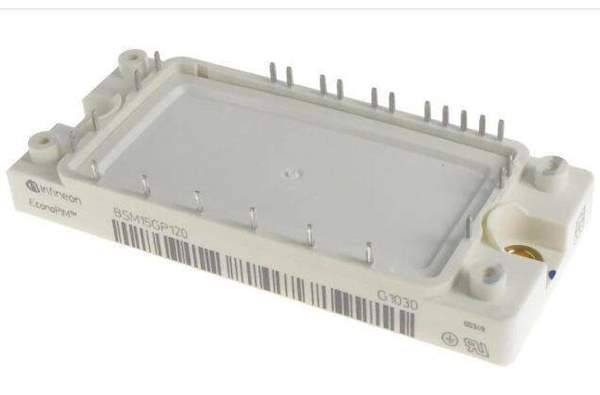

BSM15GP120 Infineon Technologies
Same model may have multiple batches, images only for reference.

BSM15GP120

Part No BSM15GP120
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT Modules 1200V 15A PIM
Datasheet
BSM15GP120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Infineon
Category IGBT Modules
Configuration Hex
Collector- Emitter Voltage VCEO Max 1.2 kV
Collector-Emitter Saturation Voltage 2.2 V
Pd - Power Dissipation 180 W
Package / Case EconoPIM2
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Packaging Tray
Ultra Librarian 3D Model Ultra Librarian BSM15GP120 CAD Model

Description

IGBT Modules 1200V 15A PIM
