Products specifications

Categories Discrete Semiconductor Products
Manufacturer IXYS
Series HiPerFAST
Part Status Obsolete(EOL)
Configuration Single
Voltage - Collector Emitter Breakdown (Maximum) 600V
Current - Collector (Ic) (Maximum) 75A
Power - Max 250W
Vce(on) (Maximum) @ Vge, Ic 2.5V @ 15V, 50A
Current - Collector Cutoff (Maximum) 200μA
Input Capacitance (Cies) @ Vce 4.1nF @ 25V
Input Standard
NTC Thermistor No
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Chassis Mount
Package SOT-227-4, miniBLOC
Manufacturer Package SOT-227B
Win Source Part Number 1191205-IXGN50N60BD2
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Family Name IXGN50N60BD2
Introduction Date September 22, 2000
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian IXGN50N60BD2 CAD Model

Description

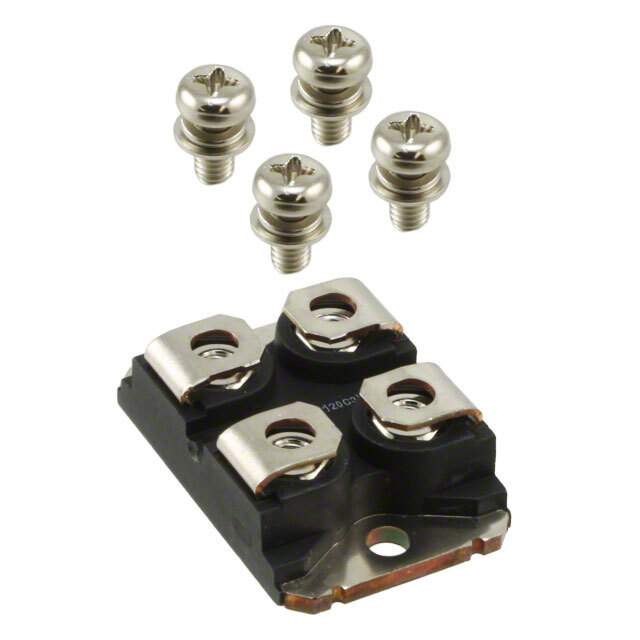

The IXGN50N60BD2 by IXYS is a HiPerFAST series power transistor that has a maximum power rating of 250W and a collector current of 75A.

  • Voltage Breakdown: 600V
  • Collector Cutoff: 200μA
  • Configuration: Single
  • Input Capacitance: 4.1nF @ 25V
  • Package: SOT-227-4, miniBLOC
  • Mounting: Chassis-Mounted
  • Status: Obsolete
  • Applications: Power supplies, motor control, and renewable energy
