FS200R12KT4RPB11BPSA1 Infineon Technologies – Price, Stock & Datasheet

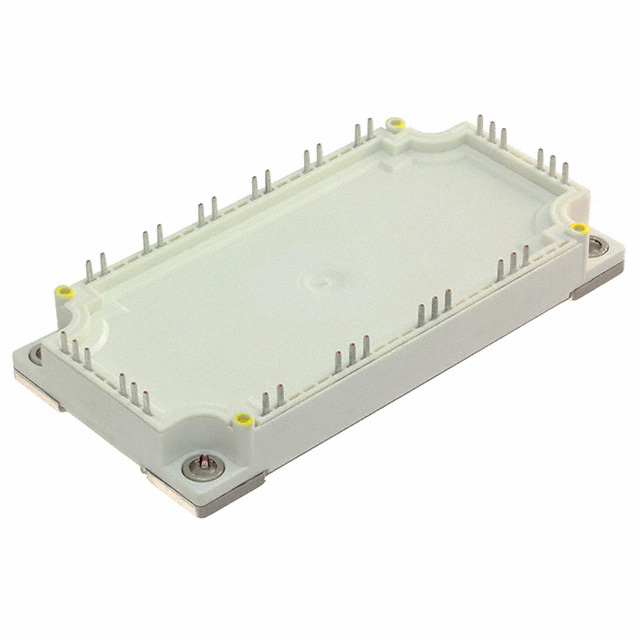

Same model may have multiple batches, images only for reference.

FS200R12KT4RPB11BPSA1

Part No FS200R12KT4RPB11BPSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT Module NPT, Trench Field Stop Three Phase Inverter 1200 V 280 A 1000 W Chassis Mount AG-ECONO3B
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Infineon Technologies
Series EconoPACK™3
Packaging Tray
IGBT Type NPT, Trench Field Stop
Configuration Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 280 A
Power - Max 1000 W
Vce(on) (Max) @ Vge, Ic 2.15V @ 15V, 200A
Current - Collector Cutoff (Max) 1 mA
Input Capacitance (Cies) @ Vce 14000 pF @ 25 V
Input Standard
NTC Thermistor Yes
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package AG-ECONO3B
Base Product Number FS200R12
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1481391-FS200R12KT4RPB11BPSA1
Ultra Librarian 3D Model Ultra Librarian FS200R12KT4RPB11BPSA1 CAD Model
