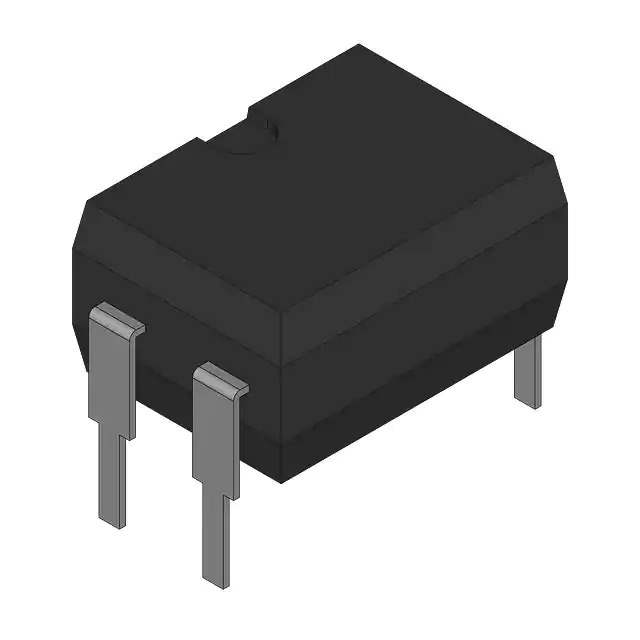

FOD816

Name: FOD816
Brand: Fairchild/ON Semiconductor
SKU: 592327
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

Part No	FOD816
Manufacturer	Fairchild/ON Semiconductor
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	AC IN-DARLINGTON OUT OPTOCOUPLER / Optoisolator Darlington Output 5000Vrms 1 Channel 4-DIP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr	Fairchild/ON Semiconductor
Package	Box
Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	600% @ 1mA
Current Transfer Ratio (Max)	7500% @ 1mA
Rise / Fall Time (Typ)	60µs, 53µs
Input Type	AC, DC
Output Type	Darlington
Voltage - Output (Max)	35V
Current - Output / Channel	80mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	1V
Temperature Range - Operating	-30°C ~ 100°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.300", 7.62mm)
Supplier Device Package	4-DIP
Standard Package	1,567 pcs
ECCN	EAR99
HTSUS	8541.49.8000
Win Source Part Number	592327-FOD816
Ultra Librarian 3D Model	Ultra Librarian FOD816 CAD Model

Description

The 592327-FOD816 is an optoisolator, specifically a transistor-based photovoltaic output optoisolator.

Output Type: Darlington
Input Type: AC and DC
Maximum Forward Current: 50mA
Typical Forward Voltage: 1.2V
Rise Time: 60μs
Fall Time: 53μs
Output Current: 80mA
Voltage Isolation: 5000Vrms
Minimum Current Transfer Ratio: 600% @ 1mA
Maximum Current Transfer Ratio: 7500% @ 1mA
Package: 4-DIP
Mounting: Through-hole
Temperature Range: -30°C to 100°C
ECCN: EAR99
Status: Obsolete
Manufacturer: Fairchild/ON Semiconductor
