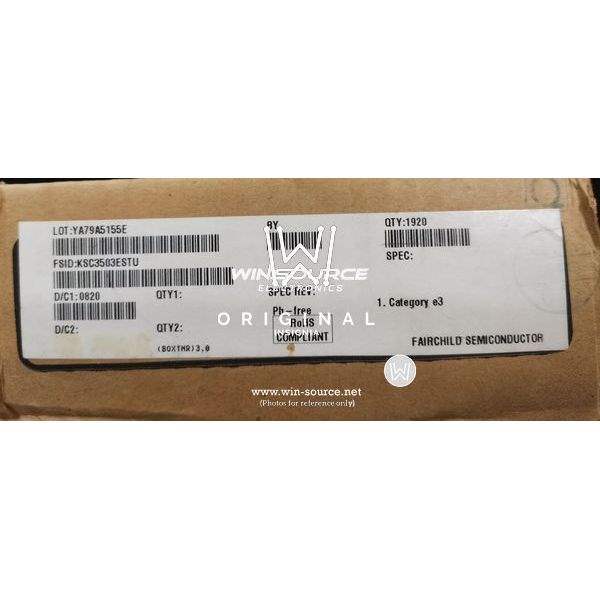

KSC3503ESTU Fairchild/ON Semiconductor KSC3503ESTU Real Image KSC3503ESTU label picture
Same model may have multiple batches, images only for reference.
KSC3503ESTU Fairchild/ON Semiconductor KSC3503ESTU Real Image KSC3503ESTU label picture
KSC3503ESTU Fairchild/ON Semiconductor KSC3503ESTU Real Image KSC3503ESTU label picture
Same model may have multiple batches, images only for reference.

KSC3503ESTU

Part No KSC3503ESTU
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS NPN 300V 0.1A TO-126
Datasheet
KSC3503ESTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Transistor Polarity NPN
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 300V
Max Vce (sat) 600mV @ 2mA, 20mA
Collector Cut-off Current(Max) 100nA (ICBO)
Typical Gain (hFE) (Min) 100 @ 10mA, 10V
Maximum Power Dissipation 7W
Frequency - Transition 150MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-126-3
Win Source Part Number 205876-KSC3503ESTU
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name KSC3503E
Introduction Date November 14, 2000
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Quantity per package 60
Ultra Librarian 3D Model Ultra Librarian KSC3503ESTU CAD Model

Description

The KSC3503ESTU is a discrete semiconductor product that belongs to the family of transistors.
