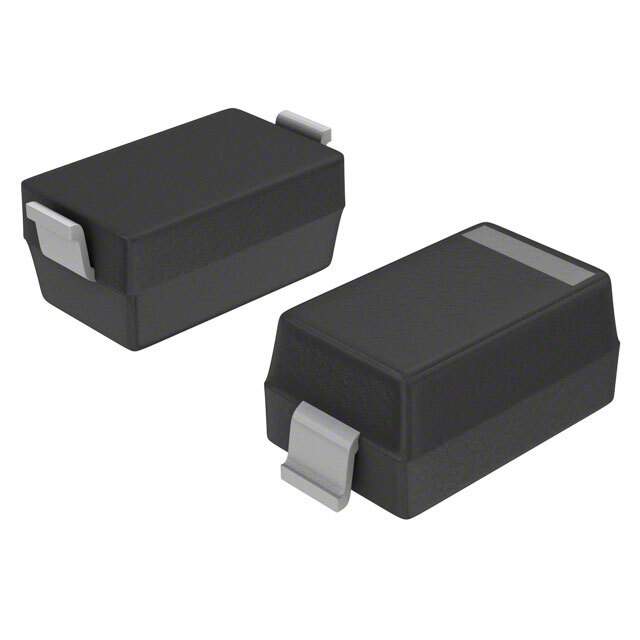

MMSZ5241B Real Image
Same model may have multiple batches, images only for reference.

MMSZ5241B

Part No MMSZ5241B
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes - Zener - Single
Description DIODE ZENER 11V 500MW SOD123
Datasheet
MMSZ5241B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Active
Voltage - Zener (Nom) (Vz) 11V
Tolerance ±5%
Maximum Power Dissipation 500mW
Impedance (Max) (Zzt) 22 Ohm
Current - Reverse Leakage @ Vr 2μA @ 8.4V
Voltage - Forward (Vf) (Max) @ If 900mV @ 10mA
Temperature Range - Operating -55°C to 150°C
Mounting SMD (SMT)
Case / Package SOD-123
Win Source Part Number 059242-MMSZ5241B
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MMSZ5241B CAD Model

Description

The MMSZ5241B from ON Semiconductor is a medium-popularity Zener diode with a voltage rating of 11V and a maximum power dissipation of 500mW.

  • Voltage Rating: 11V
  • Maximum Power Dissipation: 500mW
  • Package: reel-TR
  • Mounting: SMD (SMT) style
  • Tolerance: ±5%
  • Current Reverse Leakage: 2μA @ 8.4V
  • Impedance: 22 ohms
  • Category: Discrete Semiconductor Products
