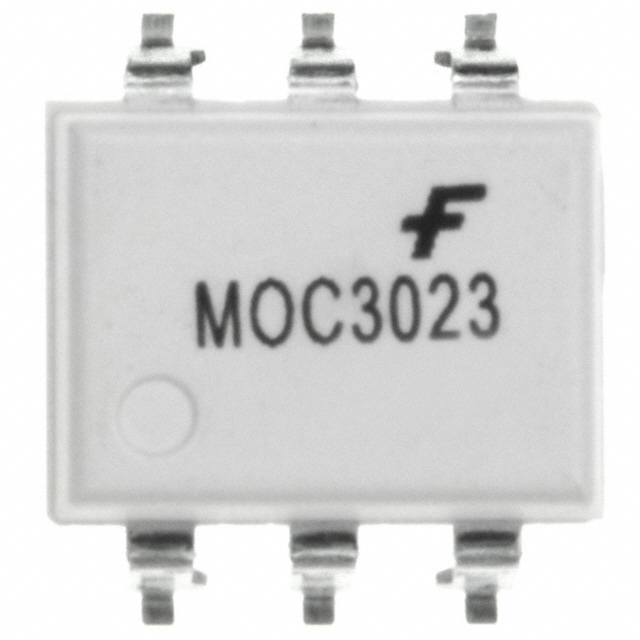

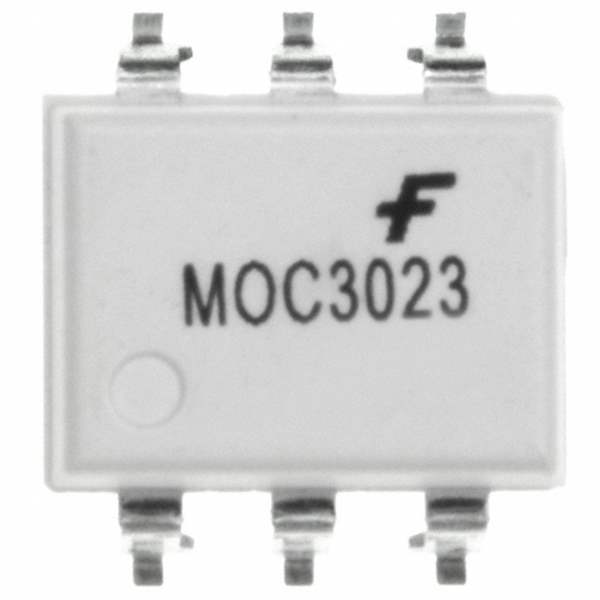

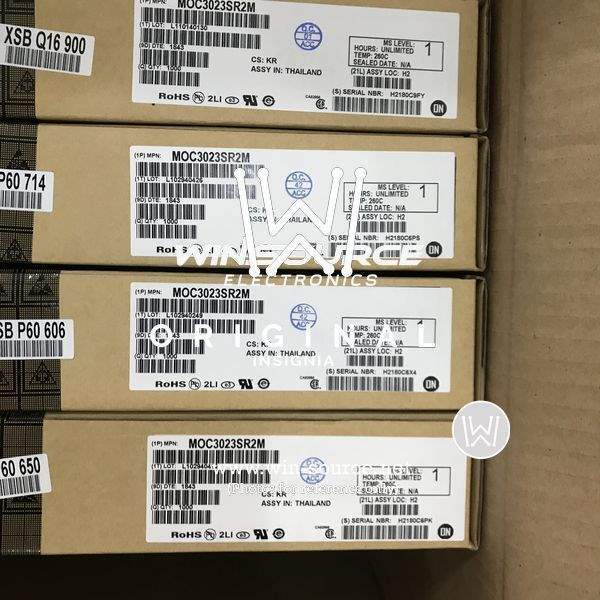

MOC3023SR2M Fairchild/ON Semiconductor MOC3023SR2M Real Image MOC3023SR2M label picture
Same model may have multiple batches, images only for reference.
MOC3023SR2M Fairchild/ON Semiconductor MOC3023SR2M Real Image MOC3023SR2M label picture
MOC3023SR2M Fairchild/ON Semiconductor MOC3023SR2M Real Image MOC3023SR2M label picture
Same model may have multiple batches, images only for reference.

MOC3023SR2M

Part No MOC3023SR2M
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 4.17KV TRIAC 6SMD
Datasheet
MOC3023SR2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 4170Vrms
Voltage - Off State 400V
Current - LED Trigger (Ift) (Max) 5mA
Current - Hold (Ih) 100μA (Typ)
Forward Voltage 1.15V
Continuous forward current- Max 60mA
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 6-SMD
Approvals UL
Win Source Part Number 024178-MOC3023SR2M
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial, Motor Drive & Control, Lighting, Power Management
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian MOC3023SR2M CAD Model

Description

The MOC3023SR2M is an isolator from Fairchild/ON Semiconductor.

  • Applications: Industrial, motor drive and control, lighting, and power management
  • Output Type: Triac
  • Isolation Voltage: 4170Vrms
  • Forward Voltage: Low
  • Continuous Forward Current: 60mA (Max)
  • Market Status: Popular
  • Supply and Demand: Sufficient
  • Package: 6-SMD
  • Approval: UL
