Same model may have multiple batches, images only for reference.

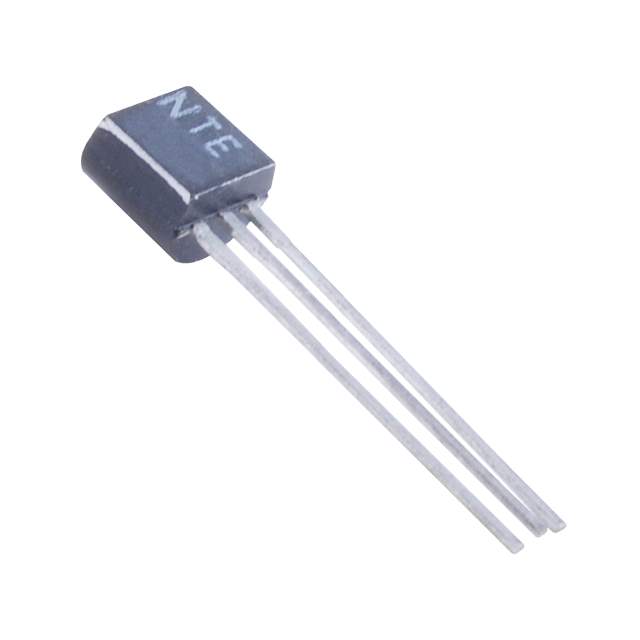

MPSH10 Real Image
Same model may have multiple batches, images only for reference.

MPSH10

Part No MPSH10
Manufacturer Fairchild/ON Semiconductor
Catalog RF Transistors (BJT)
Description TRANSISTOR NPN RF VHF/UHF TO-92
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Bulk
Status Obsolete(EOL)
Transistor Polarity NPN
VCEO Maximum Collector-Emitter Breakdown Voltage 25V
Frequency - Transition 650MHz
Maximum Power Dissipation 350mW
Typical Gain (hFE) (Min) 60 @ 4mA, 10V
Maximum Current Collector 50mA
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-92-3
Win Source Part Number 1079558-MPSH10
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MPSH10 CAD Model

Description

The MPSH10 is an NPN transistor from Fairchild/ON Semiconductor.

  • Frequency Transition: 650MHz
  • Maximum Current Collector: 50mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 25V
  • Typical Gain (hFE): 60 @ 4mA and 10V
  • Package: TO-92-3
  • Mounting Type: Through Hole
  • Maximum Power Dissipation: 350mW
  • Product Status: Obsolete
  • Temperature Rating: -55°C to 150°C
