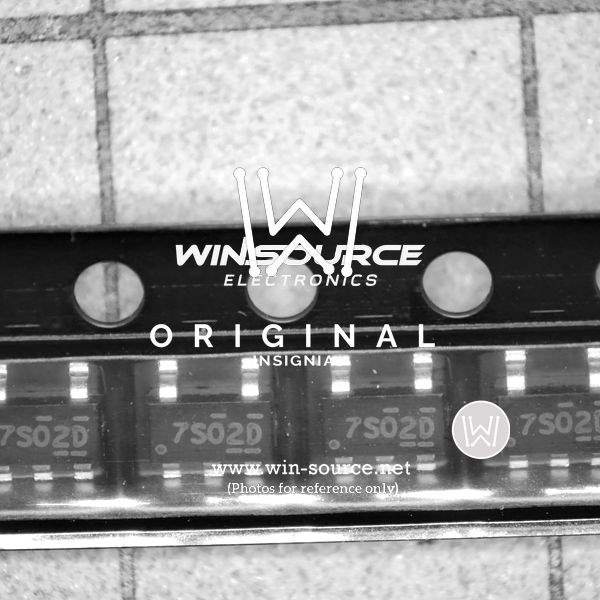

NC7S02M5X Real Image NC7S02M5X Real Image1 NC7S02M5X Real Image2 NC7S02M5X Real Image3
Same model may have multiple batches, images only for reference.
NC7S02M5X Real Image NC7S02M5X Real Image1 NC7S02M5X Real Image2 NC7S02M5X Real Image3
NC7S02M5X Real Image NC7S02M5X Real Image1 NC7S02M5X Real Image2 NC7S02M5X Real Image3
Same model may have multiple batches, images only for reference.

NC7S02M5X

Part No NC7S02M5X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC GATE NOR 1CH 2-INP SOT-23-5
Datasheet
NC7S02M5X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type NOR Gate
Number of Circuits 1
Number of Inputs 2
Supply Voltage - Operating 2 V to 6 V
Current - Quiescent (Max) 1μA
Current - Output High, Low 2.6mA, 2.6mA
Logic Level - Low 0.5V
Logic Level - High 1.5V
Max Propagation Delay @ V, Max CL 17ns @ 6V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package SOT-23-5
Dimension SC-74A, SOT-753
Win Source Part Number 024727-NC7S02M5X
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian NC7S02M5X CAD Model

Description

The Fairchild/ON Semiconductor NOR Gate is a high-performance logic gate that has a single circuit.

  • Mounting Type: Surface Mount
  • Packaging: Reel
  • Logic Type: NOR
  • Inputs: Two
  • Current Output High: 2.6mA
  • Current Output Low: 2.6mA
  • Maximum Propagation Delay @ V, Max CL: 17ns @ 6V, 50pF
  • Current Quiescent (Max): 1μA
  • Logic Level Low: 0.5V
  • Logic Level High: 1.5V
  • Operating Temperature: -40°C to 85°C
  • Supply Voltage: 2V to 6V
