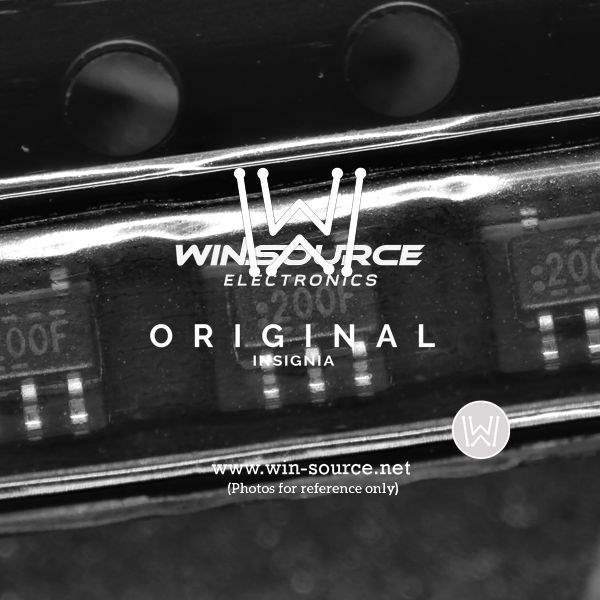

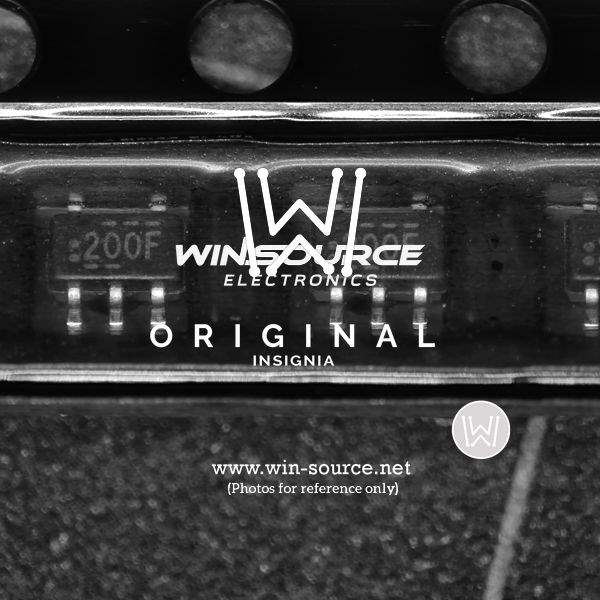

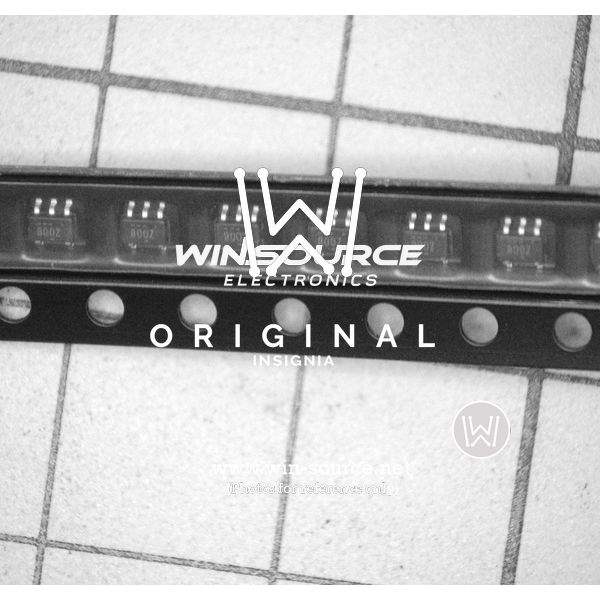

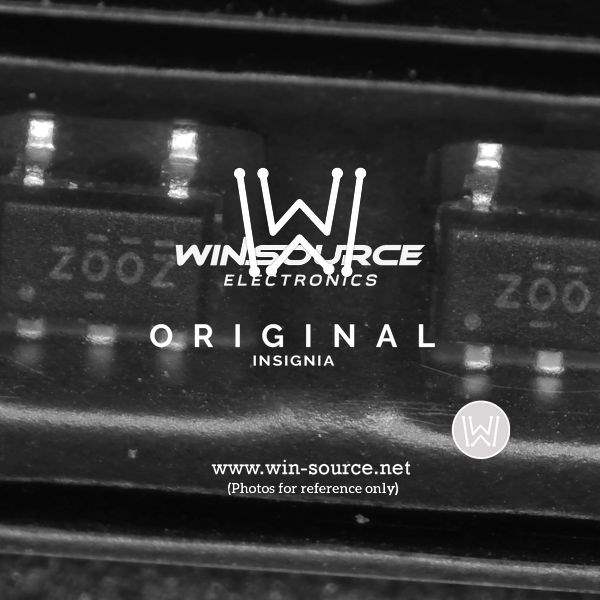

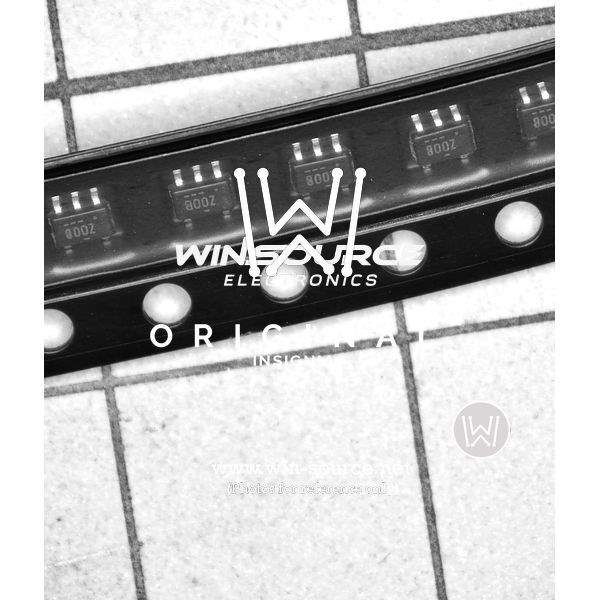

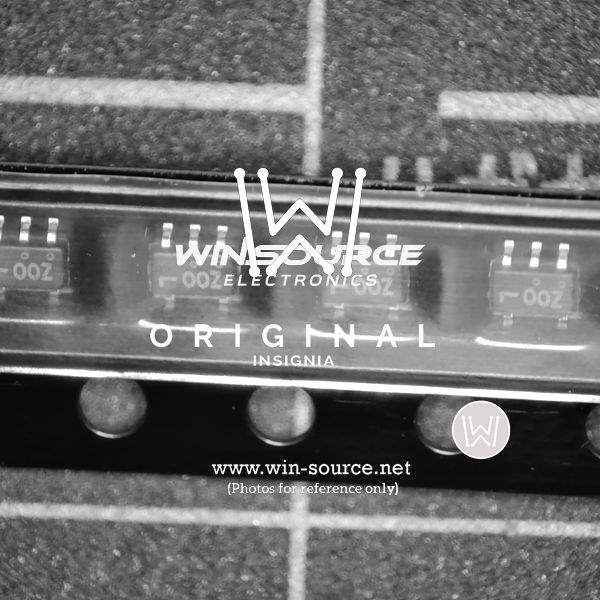

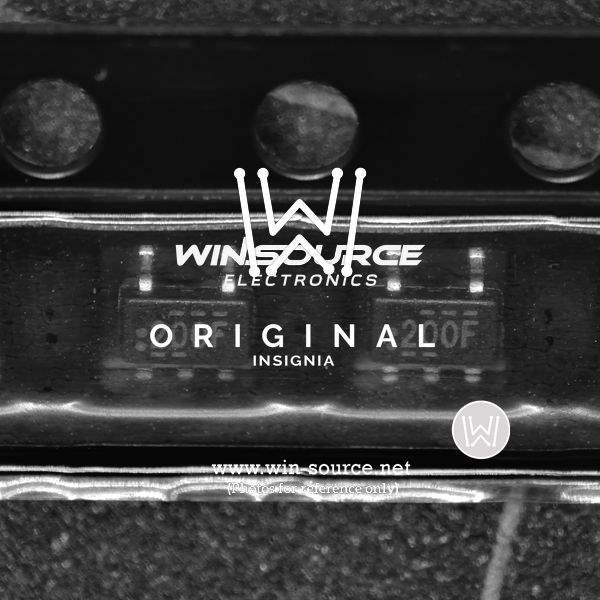

NC7SZ00P5X Real Image NC7SZ00P5X real image3873 NC7SZ00P5X Real Image1 NC7SZ00P5X Real Image2 NC7SZ00P5X Real Image3 NC7SZ00P5X Real Image4 NC7SZ00P5X Real Image5 NC7SZ00P5X Real Image6
Same model may have multiple batches, images only for reference.
NC7SZ00P5X Real Image NC7SZ00P5X real image3873 NC7SZ00P5X Real Image1 NC7SZ00P5X Real Image2 NC7SZ00P5X Real Image3 NC7SZ00P5X Real Image4 NC7SZ00P5X Real Image5 NC7SZ00P5X Real Image6
NC7SZ00P5X Real Image NC7SZ00P5X real image3873 NC7SZ00P5X Real Image1 NC7SZ00P5X Real Image2 NC7SZ00P5X Real Image3 NC7SZ00P5X Real Image4 NC7SZ00P5X Real Image5 NC7SZ00P5X Real Image6
Same model may have multiple batches, images only for reference.

NC7SZ00P5X

Part No NC7SZ00P5X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC GATE NAND 1CH 2-INP SC-70-5
Datasheet
NC7SZ00P5X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type NAND Gate
Number of Circuits 1
Number of Inputs 2
Supply Voltage - Operating 1.65 V to 5.5 V
Current - Quiescent (Max) 2μA
Current - Output High, Low 32mA, 32mA
Max Propagation Delay @ V, Max CL 4.3ns @ 5V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package SC-70-5
Dimension 5-TSSOP, SC-70-5, SOT-353
Win Source Part Number 024797-NC7SZ00P5X
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian NC7SZ00P5X CAD Model

Description

The Fairchild/ON Semiconductor NAND gate with a part number of 024797-NC7SZ00P5X is a high-speed, low-power, and single-supply IC.

  • Inputs: two
  • Output: one
  • Supply voltage range: 1.65V to 5.5V
  • Maximum propagation delay: 4.3ns @ 5V, 50pF
  • Quiescent current: 2μA
  • Package: SC-70-5
  • Mounting: surface
