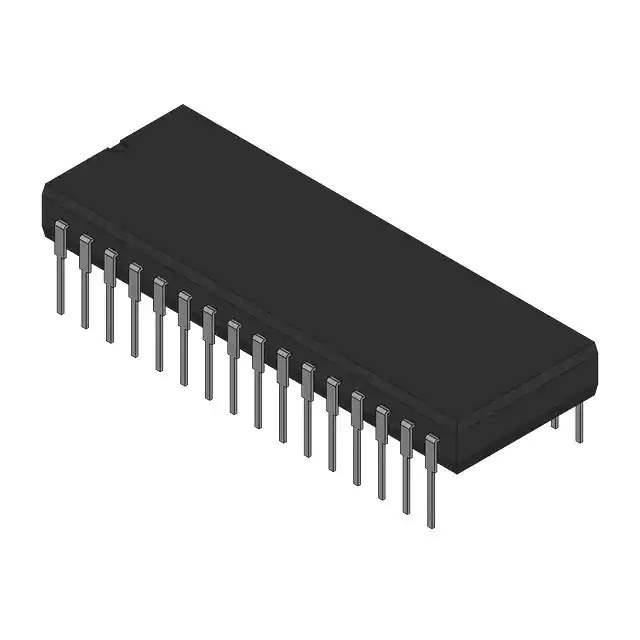

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Fairchild/ON Semiconductor
Package Tube
Product Status Obsolete
Programmable Not Verified
Memory Type Non-Volatile
Memory Format EPROM
Technology EPROM - OTP
Memory Size 1Mbit
Memory Organization 128K x 8
Memory Interface Parallel
Access Time 120 ns
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Through Hole
Package / Case 32-DIP (0.600", 15.24mm)
Supplier Device Package 32-DIP
Base Product Number NM27C010
Standard Package 11 pcs
ECCN EAR99
HTSUS 8542.32.0071
Win Source Part Number 258396-NM27C010N120
Ultra Librarian 3D Model Ultra Librarian NM27C010N120 CAD Model

Description

The NM27C010N120 is a 1Mbit EPROM memory chip designed for non-volatile storage applications.

  • Access Time: 120ns
  • Supply Voltage: 4.5V to 5.5V
  • Package: 32-DIP
  • Mounting: suitable for through-hole mounting
  • Operating Temperature: 0°C to 70°C
  • Status: an obsolete product in the market, with a limited availability of 11 pcs in a tube package.
  • Manufactured by: Fairchild/ON Semiconductor and is widely used in legacy systems and applications that require non-volatile memory storage.
