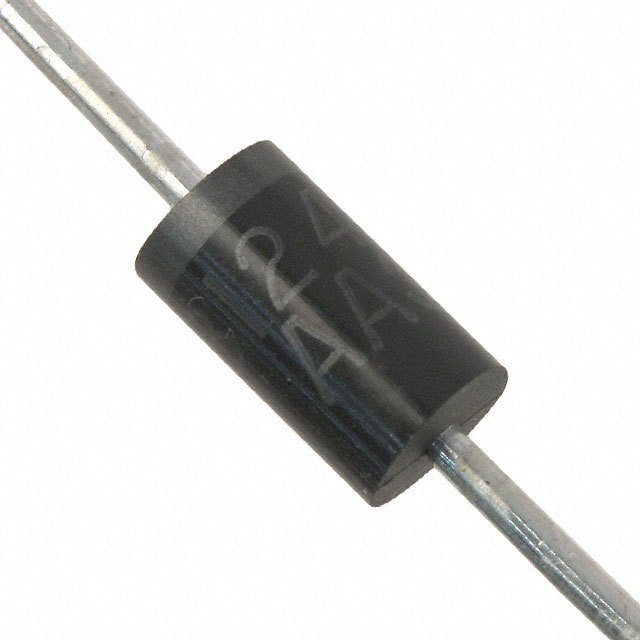

SB580 Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

SB580

Part No SB580
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 80V 5A DO201AD
Datasheet
SB580 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 80V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 850mV @ 5A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 80V
Capacitance @ Vr, F 380pF @ 4V, 1MHz
Mounting Through Hole
Case / Package DO-201AD
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 1094505-SB580
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 1,250
Ultra Librarian 3D Model Ultra Librarian SB580 CAD Model

Description

The Fairchild/ON Semiconductor SB580 is a Schottky diode.

  • Voltage - DC Reverse (Vr) (Max): 80V
  • Average Rectified Current (Io): 5A
  • Voltage - Forward (Vf) (Max) @ If: 850mV @ 5A
  • Current - Reverse Leakage @ Vr: 500μA @ 80V
  • Capacitance @ Vr, F: 380pF @ 4V, 1MHz
  • Operating Temperature - Junction: -55°C to 150°C
  • Category: Discrete Semiconductor Products
  • Popularity: Medium
  • Pieces per Package: 1250
  • Packaging: DO-201AD
