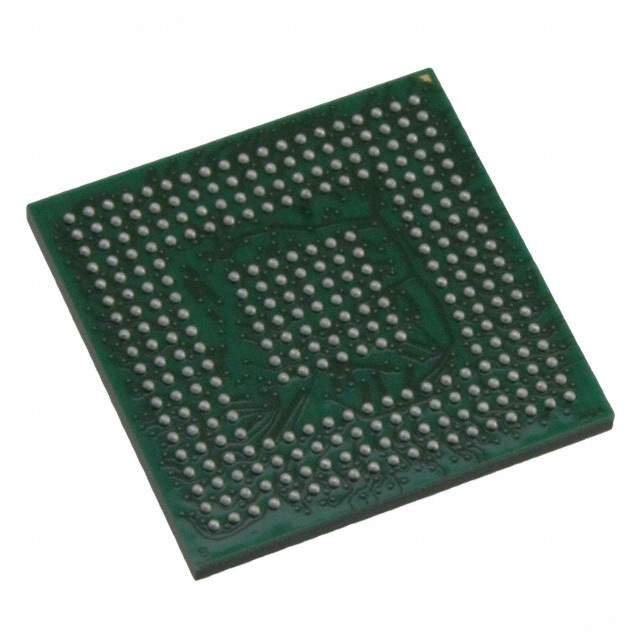

MC9328MX21CVMR2 Real Image
Same model may have multiple batches, images only for reference.

MC9328MX21CVMR2

Part No MC9328MX21CVMR2
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU I.MX21 266MHZ 289MAPBGA
Datasheet
MC9328MX21CVMR2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Reel - TR
Status Not For New Designs
Core Processor ARM926EJ-S
Number of Cores/Bus Width 1 Core, 32-Bit
Speed(Frequency) 266MHz
RAM Controllers SDRAM
Graphics Acceleration No
Display & Interface Controllers Keypad, LCD
USB USB 1.x (2)
Voltage - I/O 1.8V, 3.0V
Temperature Range - Operating -40°C to 85°C (TA)
Security Package / Case 289-LFBGA
Additional Interfaces 1-Wire, I2C, I2S, SPI, SSI, MMC/SD, UART
Win Source Part Number 134094-MC9328MX21CVMR2
Ultra Librarian 3D Model Ultra Librarian MC9328MX21CVMR2 CAD Model

Description

The NXP 134094-MC9328MX21CVMR2 is a 32-bit ARM926EJ-S core processor with a program memory size of 266MHz.

  • Core Processor: 32-bit ARM926EJ-S
  • Program Memory Size: 266MHz
  • RAM Controller: SDRAM
  • Additional Interfaces: 1-Wire, I2C, I2S, SPI, SSI, MMC/SD, and UART
  • Package/Case: 289-LFBGA
  • Operating Voltage: 1.8V and 3.0V
  • Temperature Range: -40°C to 85°C
  • Status: Not for new designs
  • Suitable for: Various applications that require a 32-bit processor with additional interfaces
